Same model may have multiple batches, images only for reference.

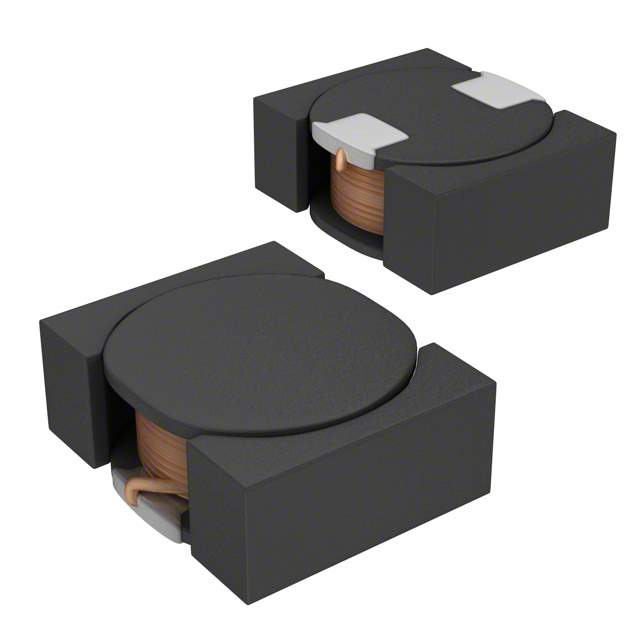

VLF403215MT-220M Real Image
Same model may have multiple batches, images only for reference.

VLF403215MT-220M

Part No VLF403215MT-220M
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description Inductors for Power Circuits Wound Ferrite
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Series VLF-M
Packaging Reel - TR
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 950mA
Current - Saturation 650mA
Shielding Shielded
DC Resistance (DCR) 380 mOhm Max
Operating Temperature Range -40°C ~ 105°C
Test Frequency 1MHz
Mounting SMD
Package Nonstandard
Size 0.157" L x 0.126" W (4.00mm x 3.20mm)
Height - Seated (Maximum) 0.059" (1.50mm)
Win Source Part Number 1279377-VLF403215MT-220M
Manufacturer Homepage www.tdk.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name VLF-M
Introduction Date May 20, 2002
ECCN EAR99
Country of Origin Japan, Philippines, Republic of Korea, Taiwan
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian VLF403215MT-220M CAD Model

Description

It is a wirewound type of component with a shielding feature that ensures its durability and reliability.

  • Current rating: 950mA
  • Inductance: 22μH
  • Package: non-standard
  • Size: 0.157" L x 0.126" W (4.00mm x 3.20mm)
  • Manufacturer: TDK Corporation, a reputable company that produces high-quality electronic components.
  • Halogen-free standards: compliant
