Same model may have multiple batches, images only for reference.

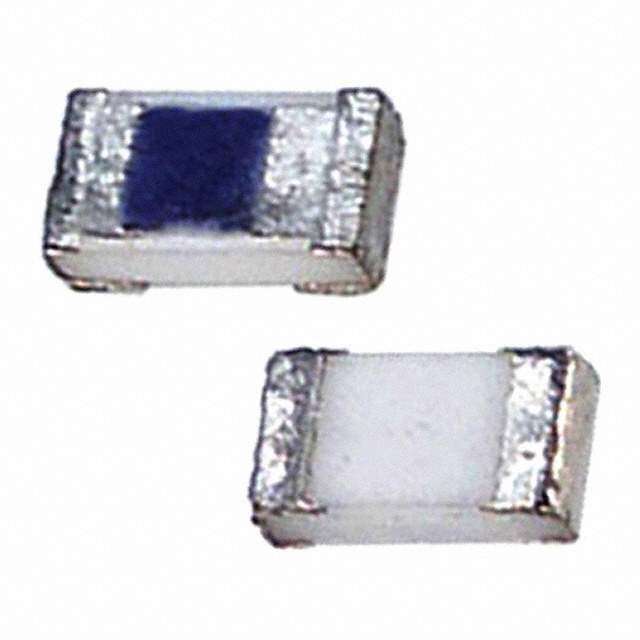

0686-1000-01 Real Image
Same model may have multiple batches, images only for reference.

0686-1000-01

Part No 0686-1000-01
Manufacturer Bel Fuse Inc.
Catalog Fuses
Description FUSE BRD MNT 1A 32VAC 63VDC 0603
Datasheet
0686-1000-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bel Fuse Inc.
Packaging Reel - TR
Status Active
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1A
Voltage Rating - AC 32V
Voltage Rating - DC 63V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A AC, 50A DC
Nominal Melting - I2t 0.036
Approvals cURus
Temperature Range - Operating -55°C to 125°C
Nominal Cold Resistance 0.12 Ohm
Win Source Part Number 197160-0686-1000-01
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 0686-1000-01 CAD Model

Description

Product Overview

The 0686-1000-01 is crafted for high-capacity applications requiring reliable performance and flexibility. Its robust design supports a broad range of uses with high operational demands.

Features and Benefits

  • High throughput capability
  • Rugged design for harsh conditions
  • Excellent scalability

Applications and Projects

  • Industrial automation
  • Power distribution networks
  • Large-scale communication devices
  • Network equipment

The 0686-1000-01 is ideal for projects where performance and robustness are critical considerations.
