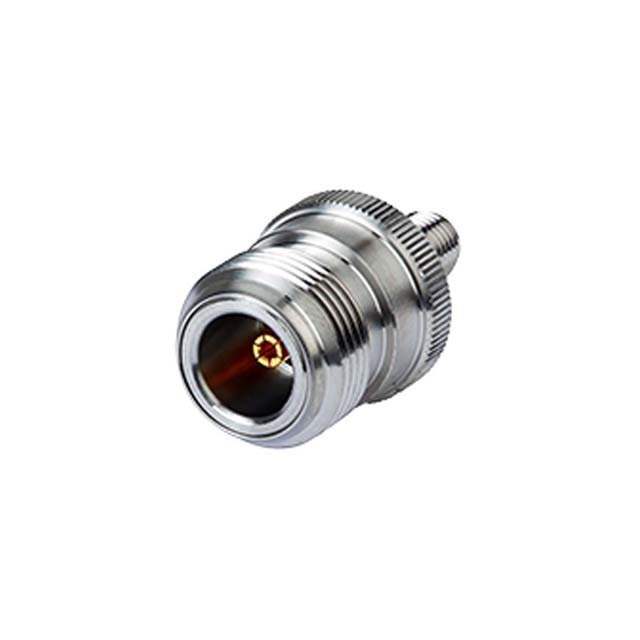

Same model may have multiple batches, images only for reference.

NF-SM50+

Name: NF-SM50+
Brand: Mini-Circuits
SKU: WS1209645
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	NF-SM50+
Manufacturer	Mini-Circuits
Catalog	Coaxial Connectors (RF) - Adapters
Description	ADAPTER / N-F / SMA-M / ROHS
Datasheet	NF-SM50+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1209645-NF-SM50+
Manufacturer	Mini-Circuits
Category	Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Package	Bag
Product Status	Active
Adapter Type	Plug to Jack
Conversion Type	Between Series
Center Gender	Female to Male
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	N Jack, Female Socket
Impedance	50 Ohms
Ultra Librarian 3D Model	Ultra Librarian NF-SM50+ CAD Model

Description

Features
• flat response
• excellent VSWR
• passivated stainless steel
• low cost adapters, available from stock
