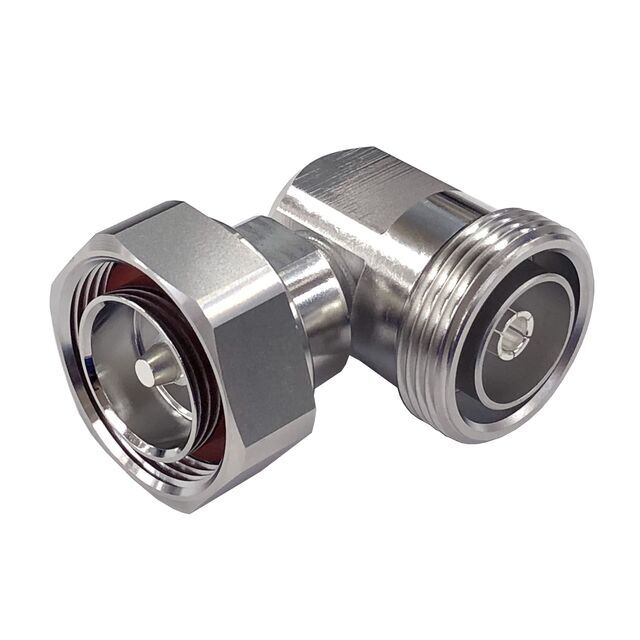

7/16-LA-PJ TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7/16-LA-PJ

Part No 7/16-LA-PJ
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description Adapter Coaxial Connector 7/16 Jack, Female Socket To 7/16 Plug, Male Pin 50 Ohms
Datasheet
7/16-LA-PJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Retail Package
Product Status Active
Adapter Type Plug to Jack
Conversion Type Same Series
Adapter Series 7/16 to 7/16
Center Gender Female to Male
Convert From (Adapter End) 7/16 Jack, Female Socket
Convert To (Adapter End) 7/16 Plug, Male Pin
Impedance 50 Ohms
Style Right Angle
Mounting Type Free Hanging (In-Line), Right Angle
Fastening Type Threaded, Threaded
Frequency - Max 3GHz
Ingress Protection Waterproof
Center Contact Plating Silver
Ultra Librarian 3D Model Ultra Librarian 7/16-LA-PJ CAD Model
