02-09-1119

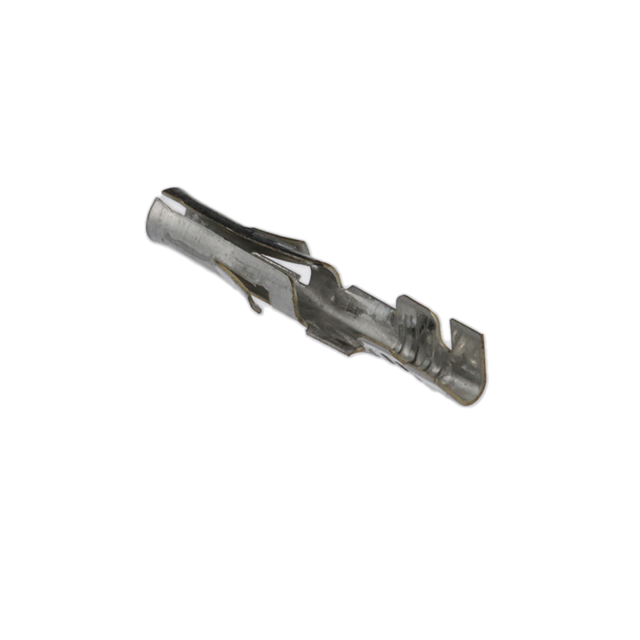

Name: 02-09-1119
Brand: Molex, LLC
SKU: 1015839
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	02-09-1119
Manufacturer	Molex, LLC
Catalog	Terminal Blocks
Description	Connector, Soft Shell; Socket; Universal MATE-N-LOK; 19 A; 600 VAC; 20-14 AWG
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Connector Type	Connector, PCB, Signal, Socket
Contact Gender	Female
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	10 mΩ
Country of Origin	US
Depth	5.33 mm
Gender	Female
Height	4.83 mm
Lead Free	Yes
Length	21.97 mm
Max Current Rating	17 A
Maximum Operating Temperature	105 °C
Max Voltage Rating (AC)	250 V
Min Operating Temperature	-40 °C
Mount	Cable
Number of Contacts	1
Orientation	Straight
Packaging	Bulk
Pitch	5.03 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Shielding	Unshielded
Termination	Crimp
Weight	360.010594 mg
Width	6.35 mm
Wire/Cable Gauge	22 AWG
Win Source Part Number	1015839-02-09-1119
Categories	Terminal Blocks
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 02-09-1119 CAD Model

Alternative Products

Description

This Molex PCB signal socket connector has a pitch of 5.03mm, a crimp termination, and is made of brass with a tin contact plating.

Manufacturer: Molex
Pitch: 5.03mm
Termination: Crimp
Contact Material: Brass
Contact Plating: Tin
Number of Contacts: Single
Gender: Female
Orientation: Straight
Shielding: Unshielded
Width: 6.35mm
Length: 21.97mm
Height: 4.83mm
Wire/Cable Gauge: 22 AWG
Maximum Current Rating: 17A
RoHS Compliant: Yes
Flammability Rating: UL94 V-0
Application: Cable Mounting
