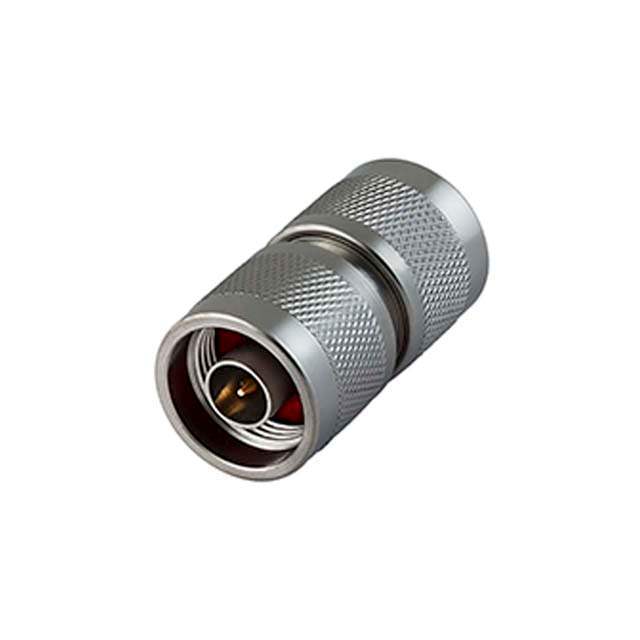

Same model may have multiple batches, images only for reference.
NM-NM50-18+ Mini-Circuits
Same model may have multiple batches, images only for reference.

NM-NM50-18+

Part No NM-NM50-18+
Manufacturer Mini-Circuits
Catalog Coaxial Connectors (RF) - Adapters
Description ADPTR N-M/N-M 50-OHM DC-18GHZ
Datasheet
NM-NM50-18+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209654-NM-NM50-18+
Manufacturer Mini-Circuits
Category Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Package Bag
Product Status Active
Adapter Type Plug to Plug
Conversion Type Same Series
Center Gender Male to Male
Convert From (Adapter End) N Plug, Male Pin
Convert To (Adapter End) N Plug, Male Pin
Impedance 50 Ohms
Ultra Librarian 3D Model Ultra Librarian NM-NM50-18+ CAD Model

Description

Mini-Circuits’ NM-NM50-18+ is a coaxial N-Male to N-Male adapter supporting a wide range of applications from DC to 18 GHz. This model provides excellent VSWR, low insertion loss, and flat response versus frequency. The NM-NM50-18+ features passivated stainless steel construction and measures only 0.72” (l) x 0.80” (dia.).
