BNCC-Y-JPJ-75 TYCLON – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

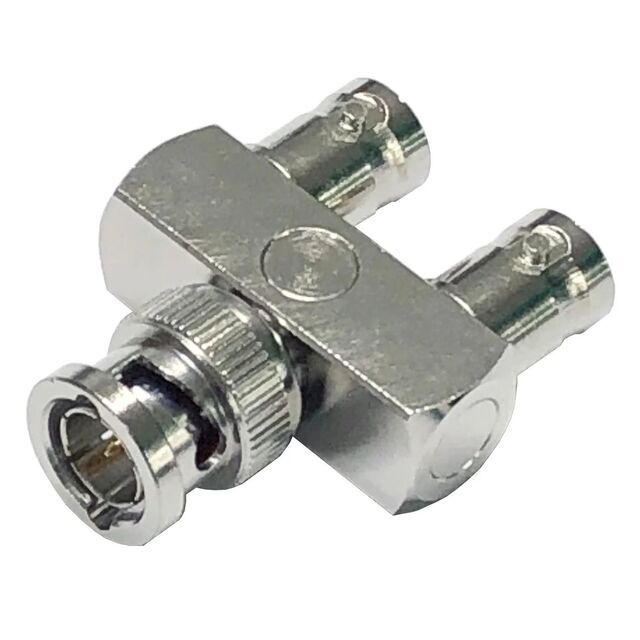

BNCC-Y-JPJ-75

Part No BNCC-Y-JPJ-75
Manufacturer TYCLON
Catalog Coaxial Connectors (RF) - Adapters
Description an BNC75Ω adaptor connector. This connector is suitable for various high-frequency applications. It features a impedance 75Ω, and has a rated voltage of AC 500V, ensures a high insulation resistance (1000MΩ(Min.) at DC 500V), a low contact resistance (3 mΩ(Max.). Withstanding temperatures from -40 to +85°C. The contact is made of Brass/Phosphor Bronze/Gold Plating, while the body is Brass/Nickel Plating.
Datasheet
BNCC-Y-JPJ-75 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help
