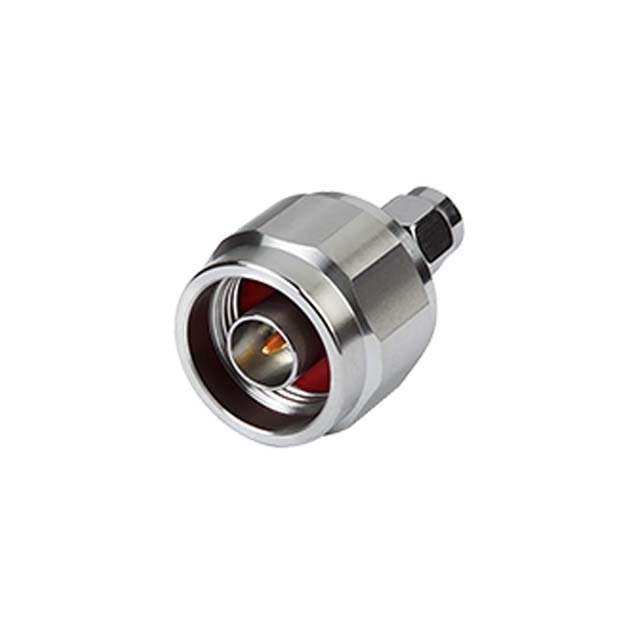

Same model may have multiple batches, images only for reference.

NM-SM50+

Name: NM-SM50+
Brand: Mini-Circuits
SKU: WS1209647
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NM-SM50+
Manufacturer	Mini-Circuits
Catalog	Coaxial Connectors (RF) - Adapters
Description	ADAPTER / N-M / SMA-M / ROHS
Datasheet	NM-SM50+ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Win Source Part Number	WS1209647-NM-SM50+
Manufacturer	Mini-Circuits
Category	Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Adapters
Package	Bag
Product Status	Active
Adapter Type	Plug to Plug
Conversion Type	Between Series
Center Gender	Male to Male
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	N Plug, Male Pin
Impedance	50 Ohms
Ultra Librarian 3D Model	Ultra Librarian NM-SM50+ CAD Model

Description

THE BIG DEAL

Flat response
Excellent VSWR
Passivated stainless steel
Low cost adapters, available from stock
