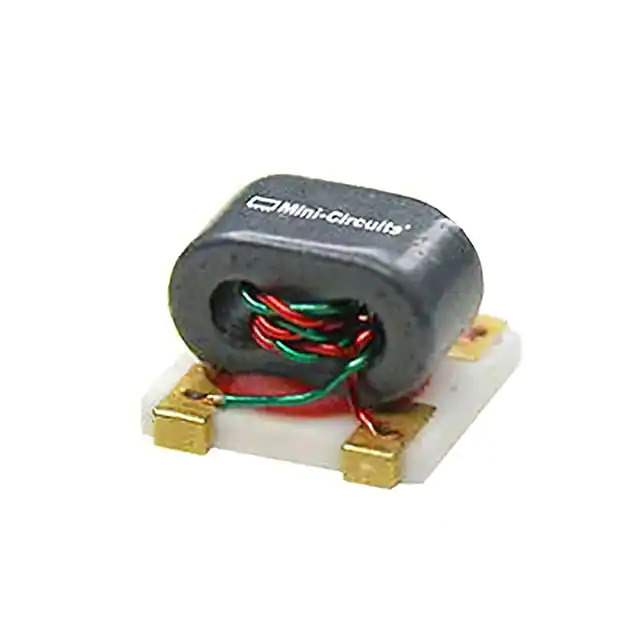

TC1.5-52TG2+ Real Image
Same model may have multiple batches, images only for reference.

TC1.5-52TG2+

Part No TC1.5-52TG2+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:1.5 CORE & WIRE TRANSFORMER, 0
Datasheet
TC1.5-52TG2+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 500kHz ~ 550MHz
Insertion Loss (Max) 3dB
Return Loss (Min) 10.19dB
Package / Case 6-SMD (5 Leads), Flat Lead
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 899110-TC1.5-52TG2+
Ultra Librarian 3D Model Ultra Librarian TC1.5-52TG2+ CAD Model

Description

The 899110-TC1.5-52TG2+ is an RF and Wireless Balun component manufactured by Mini-Circuits.

  • Applications: Various applications requiring a frequency range of 500kHz to 550MHz
  • Frequency Range: 500kHz to 550MHz
  • Maximum Insertion Loss: 3dB
  • Minimum Return Loss: 10.19dB
  • Package Type: 6-SMD (5 Leads), Flat Lead
  • Installation: Surface mount
  • Package: Tape & reel
  • Standard Quantity: 2,000 pcs
  • ECCN: EAR99
  • MSL level: 1
  • HTSUS code: 8504.31.4035
  • Product Line: Mini-Circuits active product line
