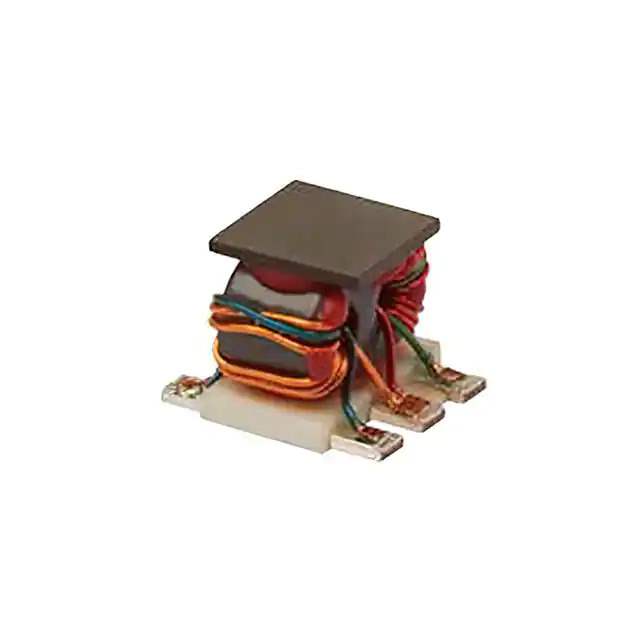

TC4-1WX+ Real Image
Same model may have multiple batches, images only for reference.

TC4-1WX+

Part No TC4-1WX+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:4 CORE & WIRE TRANSFORMER, 3 -
Datasheet
TC4-1WX+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 3MHz ~ 800MHz
Insertion Loss (Max) 3dB
Return Loss (Min) 9.07dB
Package / Case 5-SMD Module
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 727521-TC4-1WX+
Ultra Librarian 3D Model Ultra Librarian TC4-1WX+ CAD Model

Description

The 727521-TC4-1WX+ is another balun component from Mini-Circuits. It is designed for RF and wireless applications and operates in the frequency range of 3MHz to 800MHz. This balun provides a maximum insertion loss of 3dB and a minimum return loss of 9.07dB. It comes in a surface mount package with 5-SMD module configuration. The standard package includes 2,000 pieces. The 727521-TC4-1WX+ is commonly used in RF systems that require impedance matching and signal conversion. It is an active product from Mini-Circuits, a trusted manufacturer of RF components.
