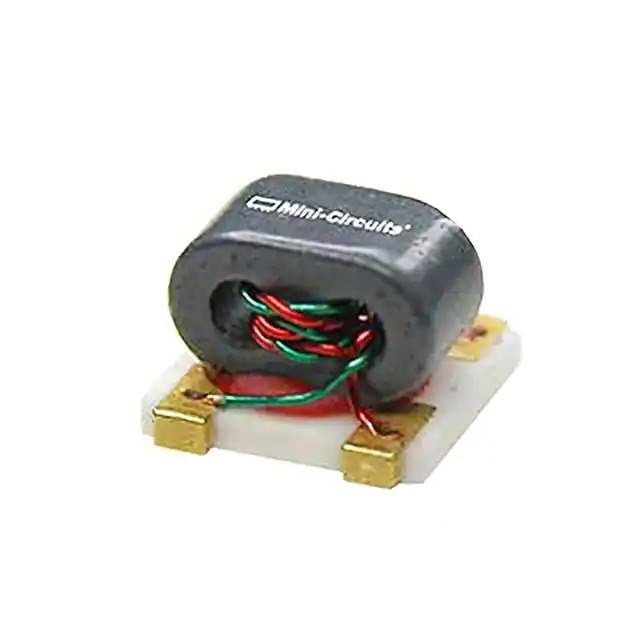

TC4-25G2+ Real Image
Same model may have multiple batches, images only for reference.

TC4-25G2+

Part No TC4-25G2+
Manufacturer Mini-Circuits
Catalog Balun
Description 1:4 CORE & WIRE TRANSFORMER, 500
Datasheet
TC4-25G2+ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr Mini-Circuits
Package Tape & Reel
Product Status Active
Frequency Range 500MHz ~ 2.5GHz
Insertion Loss (Max) 3dB
Return Loss (Min) 6.09dB
Package / Case 6-SMD (5 Leads), Flat Lead
Mounting Type Surface Mount
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 936151-TC4-25G2+
Ultra Librarian 3D Model Ultra Librarian TC4-25G2+ CAD Model

Description

The 936151-TC4-25G2+ is a Balun designed for use in RF and wireless applications.

  • Package: 6-SMD (5 Leads), Flat Lead
  • Standard Package: 2,000 pcs
  • Frequency Range: 500MHz to 2.5GHz
  • Insertion Loss: 3dB (maximum)
  • Return Loss: 6.09dB
  • Mounting Type: Surface Mount
  • Manufacturer: Mini-Circuits
  • Status: Active
