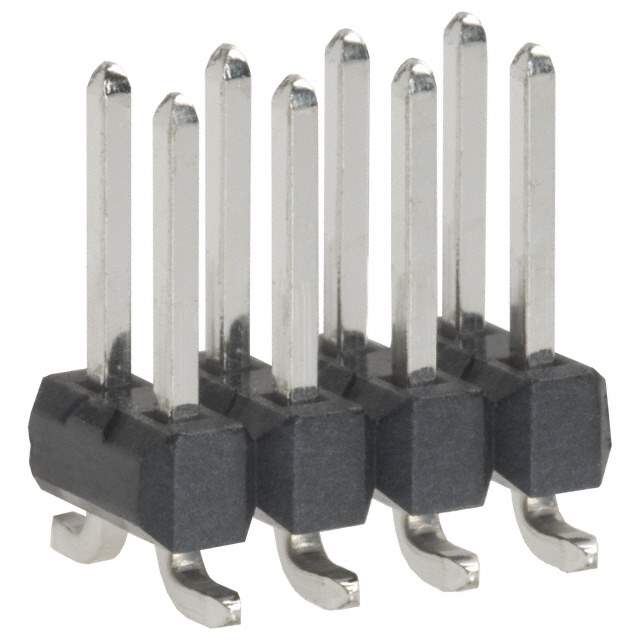

0015912080 Real Image
Same model may have multiple batches, images only for reference.

0015912080

Part No 0015912080
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 8POS 2.54MM / Connector Header Surface Mount 8 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series C-Grid 71308
Package Tube
Product Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 150.0µin (3.81µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 150.0µin (3.81µm)
Applications Automotive, General Purpose, Lighting, Medical, Telecommunications
Base Product Number 001591
Standard Package 2,808 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 854052-0015912080
Ultra Librarian 3D Model Ultra Librarian 0015912080 CAD Model

Description

The 854052-0015912080 is a male pin header connector from the C-Grid 71308 series.

  • Applications: Automotive, general purpose, lighting, medical, and telecommunications
  • Positions: 8
  • Design: Breakaway Header
  • Rows: 2
  • Termination: Solder
  • Contact Material: Copper Alloy
  • Flammability Rating: UL94 V-0
  • Mounting: Surface Mountable
  • Package: Tube
