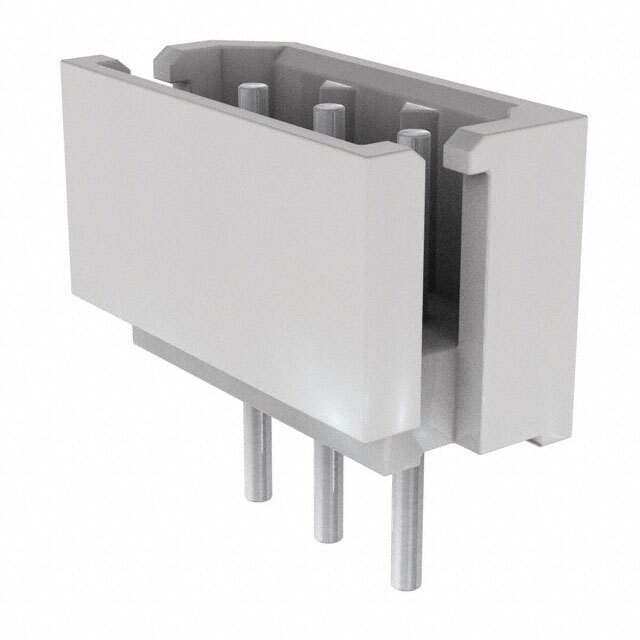

Same model may have multiple batches, images only for reference.

0022035035

Name: 0022035035
Brand: Molex, LLC
SKU: 1480947
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0022035035
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	Connector Header Through Hole 3 position 0.098" (2.50mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Mfr	Molex
Series	Mini-SPOX 5267
Packaging	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.138" (3.50mm)
Contact Length - Post	0.138" (3.50mm)
Overall Contact Length	0.350" (8.89mm)
Insulation Height	0.232" (5.90mm)
Contact Shape	Circular
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Material Flammability Rating	UL94 V-0
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	002203
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1480947-0022035035
Ultra Librarian 3D Model	Ultra Librarian 0022035035 CAD Model
