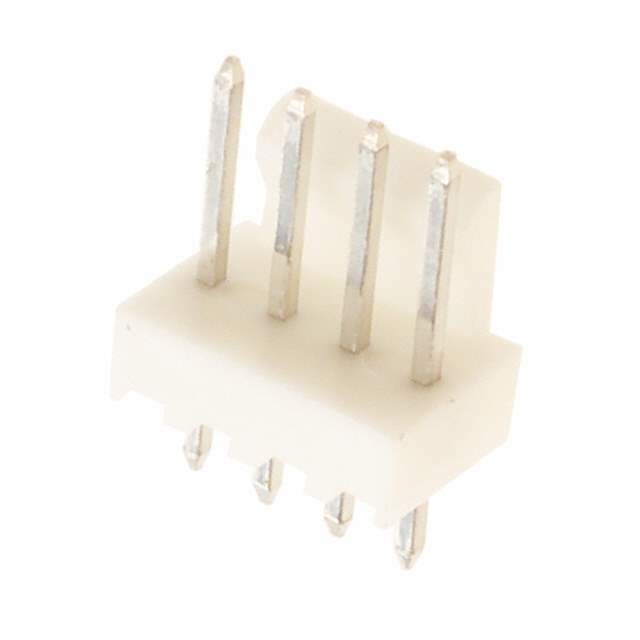

0022232041 Molex
Same model may have multiple batches, images only for reference.

0022232041

Part No 0022232041
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 4POS 2.54MM
Datasheet
0022232041 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Packaging Bulk
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Ultra Librarian 3D Model Ultra Librarian 0022232041 CAD Model

Description

KK 254 Solid Header, Vertical, with Friction Lock, 4 Circuits, Tin (Sn) Plating
