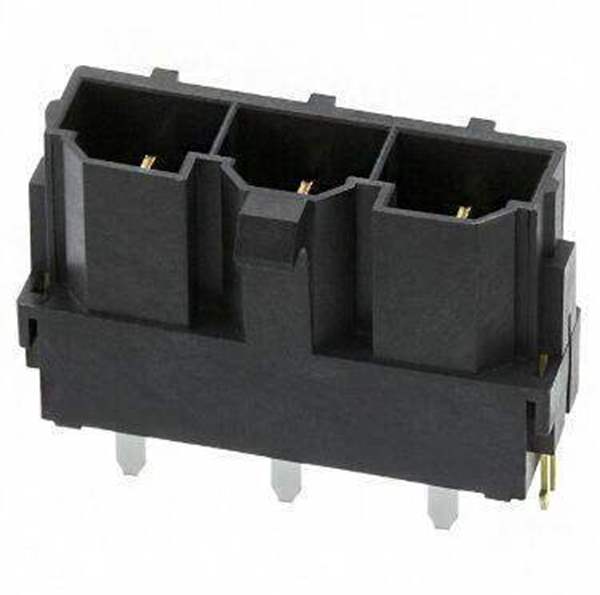

0428193213 Molex
Same model may have multiple batches, images only for reference.

0428193213

Part No 0428193213
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 3POS 10MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Molex
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.394" (10.00mm)
Mounting Type Through Hole
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Win Source Part Number WS1208429-0428193213
Ultra Librarian 3D Model Ultra Librarian 0428193213 CAD Model

Description

This specification covers the 10.00 mm / (.394 in.) centerline tin and gold, silver plated connector series, single and dual row versions in wire to wire and wire to printed circuit board applications. This product performance is optimized for stranded tinned wire termination.
