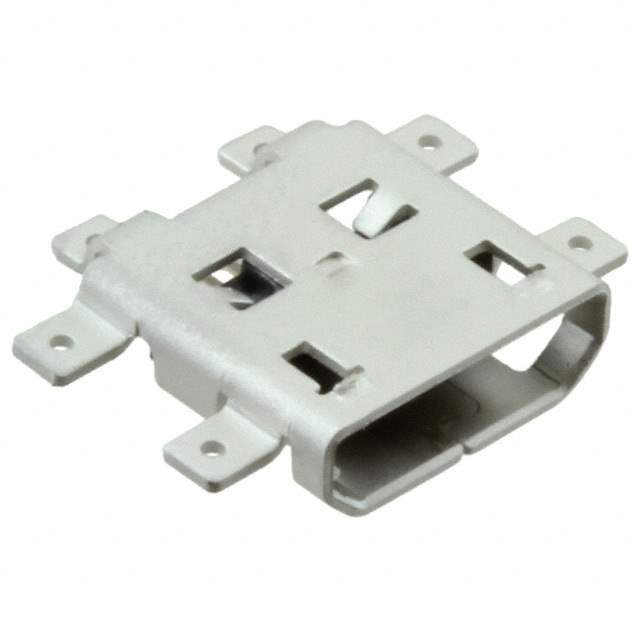

0474911001

Get a Quote

Part No	0474911001
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT MICRO USB B 5POS SMD / USB - micro B Receptacle Connector 5 Position Board Cutout, Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Molex, LLC
Series	47491
Package	Tape & Reel
Product Status	Obsolete
Connector Type	USB - micro B
Number of Contacts	5
Gender	Receptacle
Mounting Type	Board Cutout, Surface Mount, Right Angle
Mounting Feature	Horizontal, Mid Mount
Termination	Solder
Features	Pick and Place, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	1A, 1.8A
Voltage - Rated	30VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Base Product Number	047491
Standard Package	1,700 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856128-0474911001
Ultra Librarian 3D Model	Ultra Librarian 0474911001 CAD Model

Alternative Products

Description

The 856128-0474911001 is a USB connector assembly from the 47491 series.

Series: 47491
Connector Type: USB Micro B
Termination: Solder
Contact Finish: Gold
Shielded: Yes
Package: Tape & Reel
Standard Package Quantity: 1,700 pieces
Voltage Rating: 30VAC
Mounting Type: Board Cutout
Mounting Orientation: Surface Mount, Right Angle
Operating Temperature: -35°C to 85°C
Manufacturer: Molex, LLC
Product Status: Obsolete
