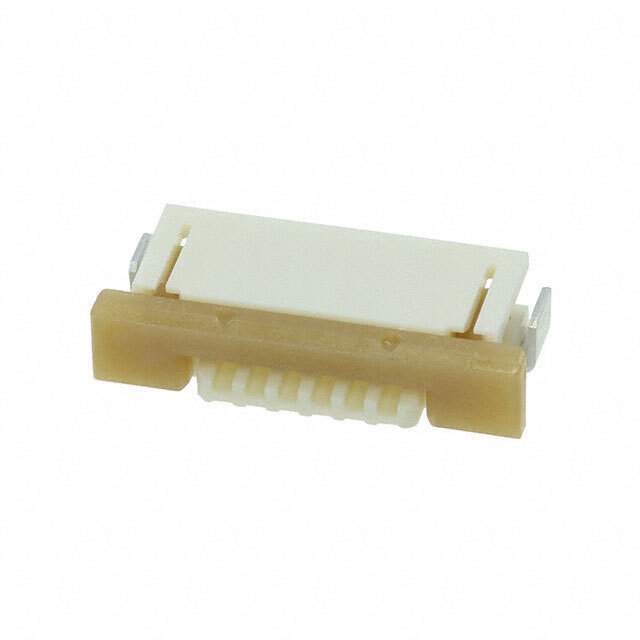

Same model may have multiple batches, images only for reference.

0522710669

Name: 0522710669
Brand: Molex, LLC
SKU: 850003
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	0522710669
Manufacturer	Molex, LLC
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC BOTTOM 6POS 1MM R/A / 6 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Molex, LLC
Series	52271
Package	Tape & Reel
Product Status	Active
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	6
Pitch	0.039" (1.00mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.118" (3.00mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Polyamide (PA46), Nylon 4/6
Actuator Material	Polyphenylene Sulfide (PPS)
Features	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-40°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	3.94µin (0.10µm)
Mating Cycles	30
Base Product Number	052271
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	850003-0522710669
Ultra Librarian 3D Model	Ultra Librarian 0522710669 CAD Model

Alternative Products

Description

The 850003-0522710669 is a FFC, FPC (Flat Flexible) Connector Assembly with 6 positions. Bold the product name (e.g., BAV99S,135 → 850003-0522710669) and manufacturer (e.g., Nexperia USA Inc. → Molex, LLC).

Type: FFC, FPC
Number of Positions: 6
Features: Solder Retention, Zero Insertion Force (ZIF)
Pitch: 0.039" (1.00mm)
Voltage Rating: 50V
Current Rating: 0.5A
Mounting Type: Surface Mount
Orientation: Right Angle
Packaging: Tape & Reel
Operating Temperature: -40°C to 85°C
Series: 52271
Package Quantity: 1,000 pcs
