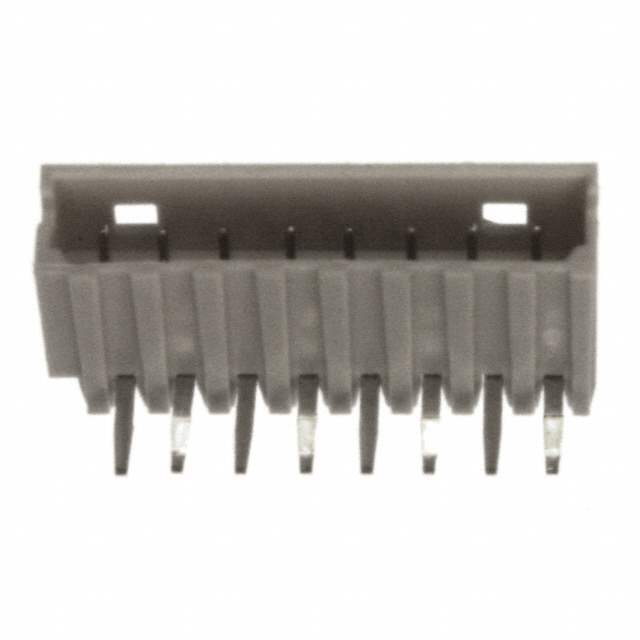

053015-0810 Molex
Same model may have multiple batches, images only for reference.

053015-0810

Part No 053015-0810
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207077-053015-0810
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Series MicroBlade 53015
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Number of Positions 8
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 053015-0810 CAD Model

Description

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
