Same model may have multiple batches, images only for reference.

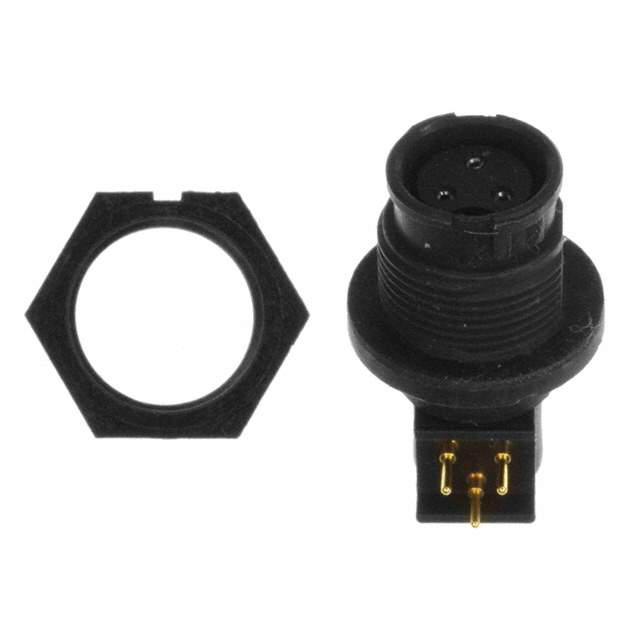

EN3P3FRAPCX Real Image
Same model may have multiple batches, images only for reference.

EN3P3FRAPCX

Part No EN3P3FRAPCX
Manufacturer Switchcraft Inc.
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 3POS GOLD SOLDER / 3 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Switchcraft Inc.
Series EN3®
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 3
Mounting Type Panel Mount, Through Hole, Right Angle
Mounting Feature Bulkhead - Front Side Nut
Termination Solder
Fastening Type Bayonet Lock
Orientation Keyed
Primary Material Plastic
Shell Material Thermoplastic
Contact Finish - Mating Gold
Color Black
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Shielding Unshielded
Current Rating (Amps) 5A
Voltage Rating 250VAC/DC
Temperature Range - Operating -40°C ~ 65°C
Contact Material Copper Alloy
Insert Material Elastomer
Applications General Purpose, Instrumentation, Marine, Medical
Base Product Number EN3P3F
Standard Package 100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1338105-EN3P3FRAPCX
Ultra Librarian 3D Model Ultra Librarian EN3P3FRAPCX CAD Model

Description

The EN3 series circular connector assembly from Switchcraft Inc. is a versatile and durable component designed for a range of applications.

  • Manufacturer: Switchcraft Inc.
  • Description: EN3 Series Circular Connector Assembly
  • Receptacle Color: Black
  • Connector Gender: Female
  • Fastening Type: Bayonet Lock
  • Voltage Rating: 250VAC/DC
  • Ingress Protection: IP66/IP68 (Dust Tight, Water Resistant, Waterproof)
  • Shielding: Unshielded
  • Material Flammability Rating: UL94 V-0
  • Applications: General Purpose, Instrumentation, Marine, Medical
  • Current Rating: 5A
  • Mounting Feature: Bulkhead Front-Side Nut
  • Mounting Type: Panel Mount, Through Hole, Right Angle
  • Operating Temperature: -40°C to 65°C
