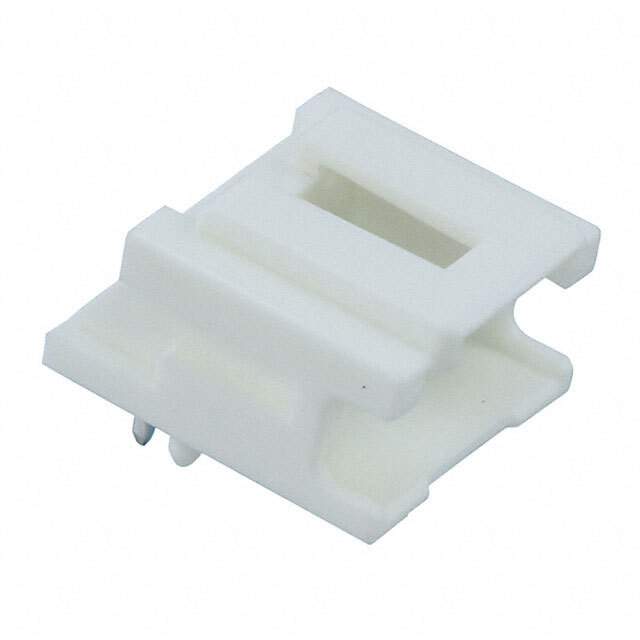

Same model may have multiple batches, images only for reference.

0559350310

Name: 0559350310
Brand: Molex, LLC
SKU: 856571
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0559350310
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 3POS 2MM / Connector Header Through Hole, Right Angle 3 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex, LLC
Series	MicroClasp 55935
Package	Tray
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	3
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.144" (3.66mm)
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.264" (6.70mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Insulation Material	Polybutylene Terephthalate (PBT)
Features	Board Guide
Insulation Color	Natural
Applications	General Purpose, Industrial, Medical
Base Product Number	055935
Standard Package	1,200 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	856571-0559350310
Ultra Librarian 3D Model	Ultra Librarian 0559350310 CAD Model

Alternative Products

Description

The MicroClasp 55935 is a header connector with male pins, designed for various electronic applications and is manufactured by Molex, LLC.

Positions: 3
Features: Board Guide
Termination: Kinked Pin
Contact Type: Solder
Mounting Type: Through Hole, Right Angle
Package: Tray
Insulation Material: Polybutylene Terephthalate (PBT)
Pitch: 0.079" (2.00mm)
Product Status: Active
Applications: General Purpose, Industrial, and Medical
