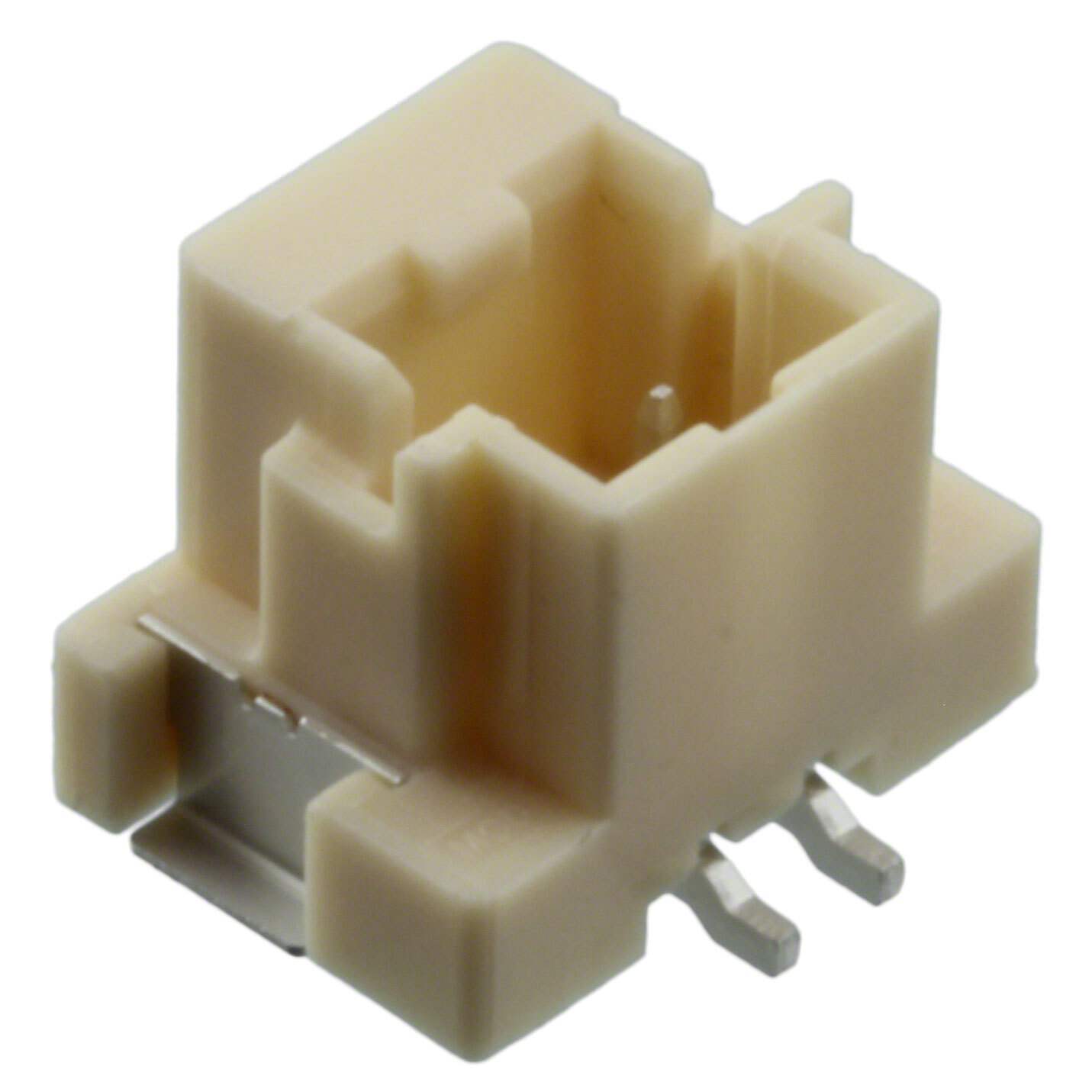

0560020-0220 Molex
Same model may have multiple batches, images only for reference.

0560020-0220

Part No 0560020-0220
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 2MM
Datasheet
0560020-0220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1207220-0560020-0220
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Series DuraClik 560020
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 0560020-0220 CAD Model

Description

Connector Header Surface Mount 2 position 0.079" (2.00mm)
