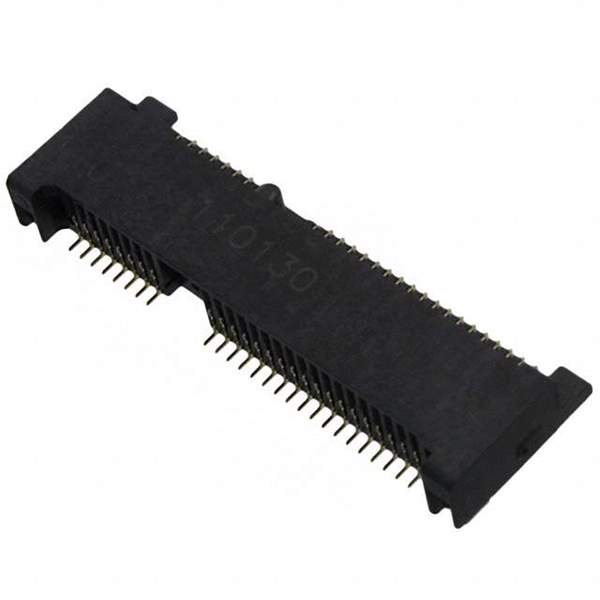

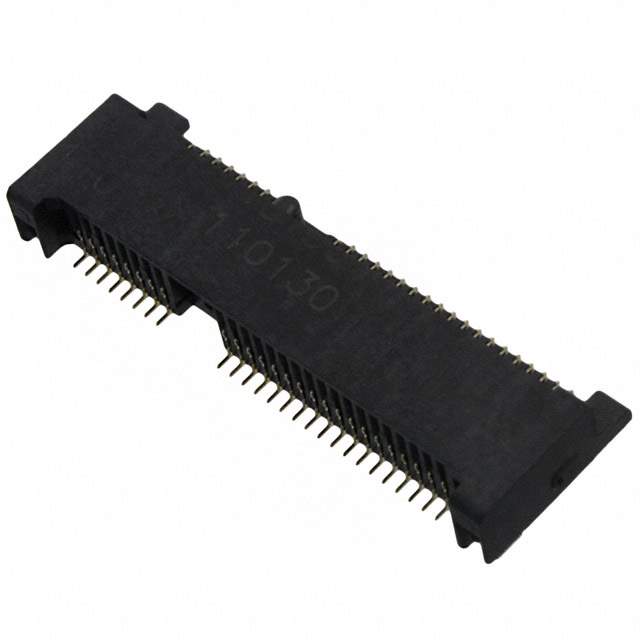

0679100002 Real Image
Same model may have multiple batches, images only for reference.

0679100002

Part No 0679100002
Manufacturer Molex, LLC
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP MIN FML 52POS 0.031 / 52 Position Female Connector PCI Express Mini Card Gold 0.031" (0.80mm) Black
Datasheet
0679100002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Card Edge Connectors - Edgeboard Connectors
Mfr Molex, LLC
Series 67910
Package Tape & Reel
Product Status Active
Card Type PCI Express Mini Card
Gender Female
Number of Positions 52
Card Thickness 0.039" (1.00mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting Type Surface Mount, Right Angle
Termination Solder
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Color Black
Temperature Range - Operating -40°C ~ 105°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number 067910
Standard Package 360 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849320-0679100002
Ultra Librarian 3D Model Ultra Librarian 0679100002 CAD Model

Description

The 849320-0679100002 is an edgeboard connector from Molex, LLC.

  • Series: 67910
  • Positions: 52
  • Pitch: 0.031" (0.80mm)
  • Color: Black
  • Feature: Board Guide
  • Termination: Solder
  • Contact Finish: Gold (10.0μin or 0.25μm)
  • Package: 360 pcs
  • Card Type: PCI Express Mini Cards
  • Card Thickness: 0.039" (1.00mm)
  • Mounting: Surface Mount, Right Angle
  • ECCN: EAR99
  • REACH: Unaffected
