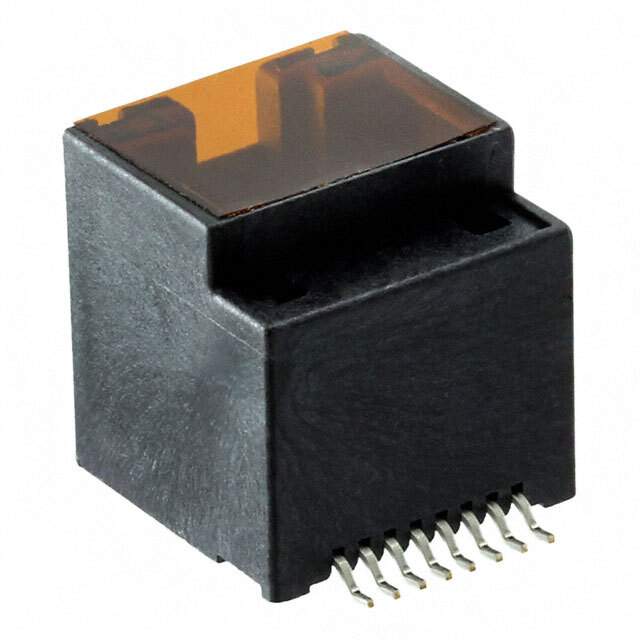

Same model may have multiple batches, images only for reference.

0855105120

Name: 0855105120
Brand: Molex, LLC
SKU: 846535
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0855105120
Manufacturer	Molex, LLC
Catalog	Modular Connectors
Description	CONN MOD JACK 8P8C VERT UNSHLD / Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded Cat3
Datasheet	0855105120 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Modular Connectors - Modular Connector Jacks
Mfr	Molex, LLC
Series	85510
Package	Tape & Reel
Product Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Ports	1
Number of Rows	1
Mounting Type	Surface Mount
Orientation	Vertical
Termination	Solder
Shielding	Unshielded
Ratings	Cat3
Features	Pick and Place Cap, Solder Retention
LED Color	Does Not Contain LED
Tab Direction	User Selectable
Contact Material	Copper Alloy
Contact Finish	Gold
Contact Finish Thickness	Flash
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Temperature Range - Operating	-40°C ~ 85°C
Base Product Number	085510
Standard Package	164 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	846535-0855105120
Ultra Librarian 3D Model	Ultra Librarian 0855105120 CAD Model

Alternative Products

Description

The 846535-0855105120 is an 8p8c modular connector jack from Molex.

Mounting: Vertical
Termination: Solder
Contact Finish: Gold, Flash Plating
Shielding: Unshielded
Housing Material: Liquid Crystal Polymer (LCP) and Glass-Filled
Mounting Type: Surface Mount
Temperature Range: -40°C to 85°C
Rating: Cat3
Package: Tape & Reel
Pieces: 164
