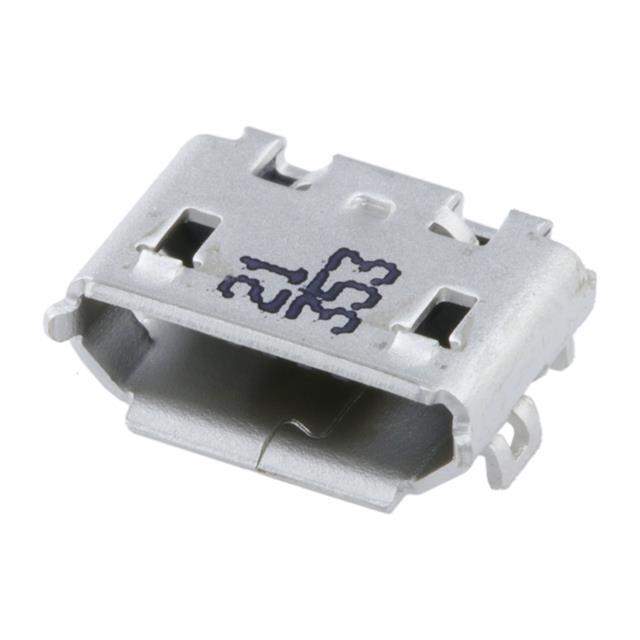

Part No 1050170002
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 MICRO B SMD R/A / USB - micro B USB 2.0 Receptacle Connector 5 Position Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr Molex, LLC
Series 105017
Package Tape & Reel
Product Status Active
Connector Type USB - micro B
Number of Contacts 5
Gender Receptacle
Specifications USB 2.0
Mounting Type Surface Mount, Right Angle
Mounting Feature Bottom Mount, Horizontal
Termination Solder
Features Board Lock
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A, 1.8A
Voltage - Rated 30V
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold-Palladium
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Base Product Number 105017
Standard Package 1,400 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 853660-1050170002
Ultra Librarian 3D Model Ultra Librarian 1050170002 CAD Model

Description

The 853660-1050170002 is a USB connector assembly from Molex, LLC.

  • Category: USB, DVI, HDMI Connectors, USB, DVI, HDMI Connector Assemblies
  • Series: 105017
  • Feature: Board Lock
  • Connector Type: USB - Micro B
  • Termination: Solder
  • Contact Finish: Gold-Palladium
  • Package: Tape and Reel
  • Contacts: 5
  • Gender: Receptacle
  • Specification: USB 2.0
  • Ingress Protection: Not Specified
  • Shielding: Not Specified
  • Material Flammability: UL94 V-0
  • Ports: 1
  • Standard Package: 1,400 pieces
  • Rated Voltage: 30V
  • Mounting Feature: Bottom Mount, Horizontal
  • Mating Cycles: 10,000
  • Insulation Color: Not Specified
  • Mounting: Surface Mountable, Right Angle Mountable
  • Operating Temperature: -30°C to 85°C
  • Shell/Shielding Material: Steel and Stainless
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.69.4040
  • Product Status: Active
