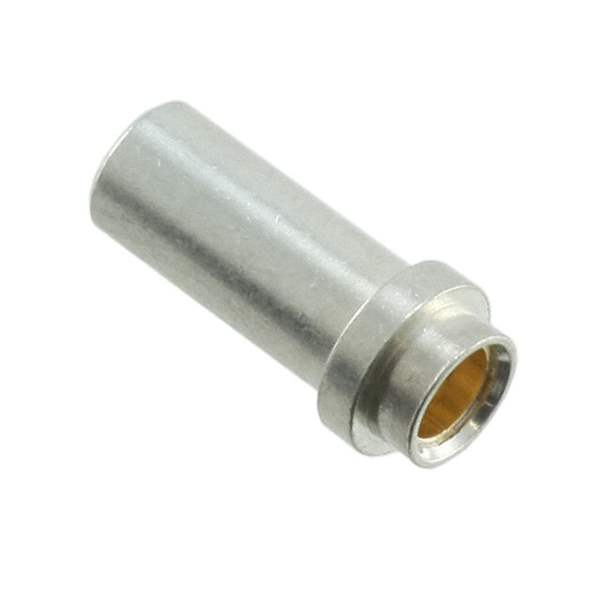

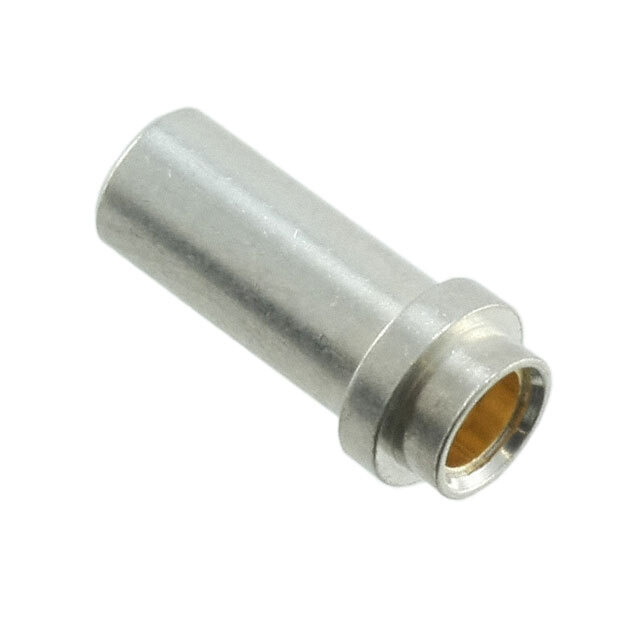

H3490-01 Harwin Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

H3490-01

Part No H3490-01
Manufacturer Harwin Inc.
Catalog Terminals
Description Pin Receptacle Connector 0.079" ~ 0.091" (2.00mm ~ 2.30mm) No Tail Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Harwin Inc.
Packaging Bulk
Tail Type No Tail
Termination Solder
Length - Overall 0.417" (10.59mm)
Accepts Pin Diameter 0.079" ~ 0.091" (2.00mm ~ 2.30mm)
Mounting Hole Diameter 0.144" ~ 0.148" (3.66mm ~ 3.77mm)
Flange Diameter 0.187" (4.75mm)
Socket Depth 0.161" (4.09mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 3.94µin (0.10µm)
Temperature Range - Operating -55°C ~ 125°C
Insertion Force 2.99N ~ 6.00N
Base Product Number H3490
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1479036-H3490-01
Ultra Librarian 3D Model Ultra Librarian H3490-01 CAD Model
