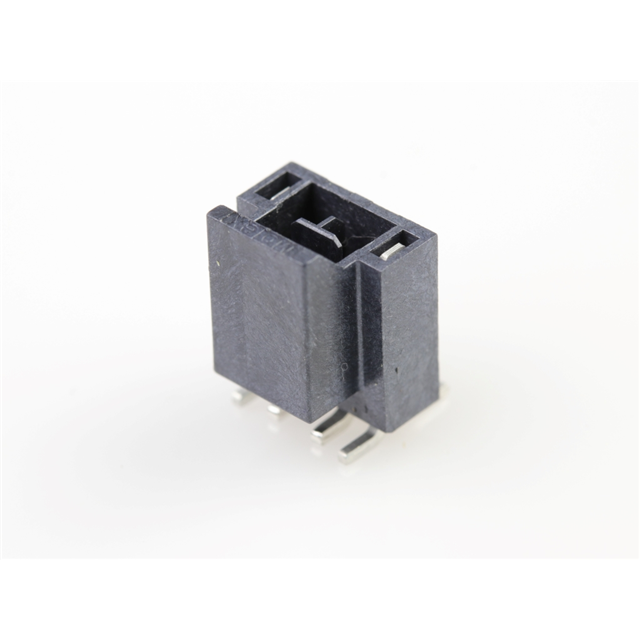

1054311102 Real Image
Same model may have multiple batches, images only for reference.

1054311102

Part No 1054311102
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 2.5MM / Connector Header Surface Mount 2 position 0.098" (2.50mm)
Datasheet
1054311102 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.382" (9.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place, Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 4A
Voltage Rating 250VAC
Contact Finish Thickness - Post 30.0µin (0.76µm)
Applications Automotive, General Purpose, Industrial, Medical, Military, Telecommunications
Base Product Number 105431
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM26073DKR,WM26073CT,WM26073TR,105431-1102
Standard Package 300
Win Source Part Number 1332688-1054311102
Ultra Librarian 3D Model Ultra Librarian 1054311102 CAD Model

Description

This is a 2-position header connector from Molex with a pick and place and solder retention features.

  • Positions: 2
  • Features: Pick and Place, Solder Retention
  • Contact Gender: Male Pins
  • Positions Loaded: All
  • Number of Rows: 1
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 250VAC
  • Application: Automotive, General Purpose, Industrial, Medical, Telecommunications
  • Pitch - Mating: 0.098" (2.50mm)
  • Contact Finish - Mating: Tin
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 105°C
  • Connector Type: Rectangular Connector
