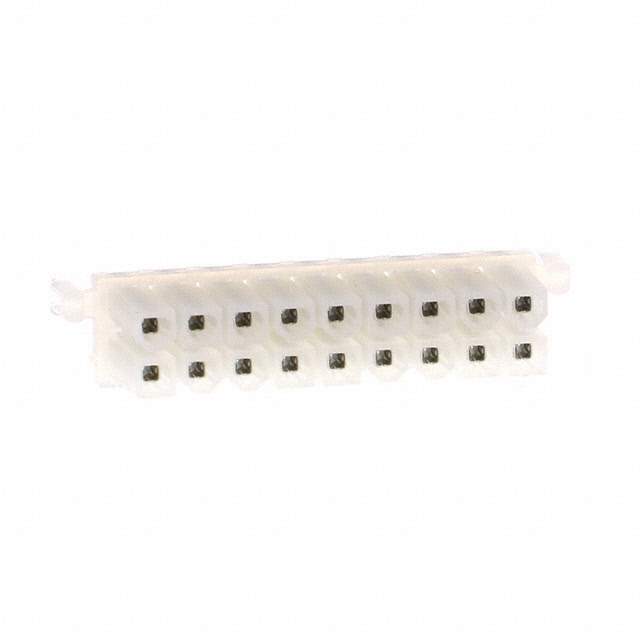

15-24-7180 Real Image
Same model may have multiple batches, images only for reference.

15-24-7180

Part No 15-24-7180
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Power RCP 18 POS 4.2mm Solder ST Thru-Hole 18 Terminal 1 Port Mini-Fit® BMI Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Gender Female
Contact Material Brass
Contact Plating Tin
Country of Origin US
Current Rating 9 A
Depth 9.6 mm
Gender Receptacle
Housing Color Natural
Housing Material Nylon
Lead Free Lead Free
Length 34 mm
Max Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Max Voltage Rating (DC) 600.6 kV
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 18
Number of Contacts 18
Number of Lines 2
Number of Poles 18
Number of Ports 1
Number of Positions 18
Number of Rows 2
Number of Terminals 18
Orientation Vertical
Pitch 4.2 mm
Radiation Hardening No
RoHS Compliant
Row Spacing 5.5 mm
Termination Solder
Voltage Rating (AC) 600 V
Win Source Part Number 1164048-15-24-7180
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 15-24-7180 CAD Model

Description

The Molex, LLC 1164048-15-24-7180 is a 2-row 18-position vertical receptacle connector designed for use in circular connector housings.

  • Rows: 2
  • Positions: 18
  • Orientation: Vertical
  • Pitch: 4.2 mm
  • Row Spacing: 5.5 mm
  • Contact Material: Brass
  • Contact Plating: Tin
  • Housing Material: Nylon
  • Housing Color: Natural
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Maximum Voltage Rating (AC): 600 V AC
  • Maximum Voltage Rating (DC): 600.6 kV DC
  • Current Rating: 9 A
  • Depth: 9.6 mm
