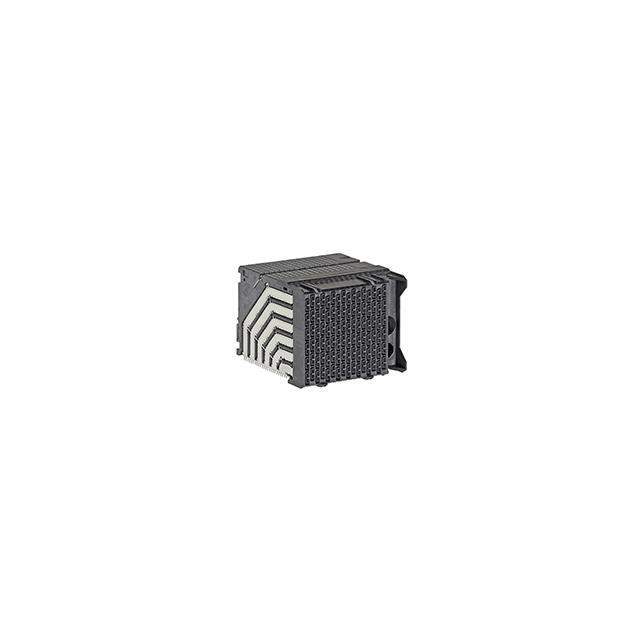

171400-5026 Real Image
Same model may have multiple batches, images only for reference.

171400-5026

Part No 171400-5026
Manufacturer Molex, LLC
Catalog Backplane Connectors
Description IMPEL 6PX16C DC GD-R ASSY  /  192 Connector Receptacle, Female Sockets Through Hole, Right Angle Black Impel, Guide Right
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr Molex
Series Impel 171400
Package Box
Connector Usage Coplanar, Daughtercard
Connector Type Receptacle, Female Sockets
Connector Style Impel, Guide Right
Number of Positions 192
Number of Positions Loaded All
Pitch 0.075" (1.90mm)
Number of Rows 12
Number of Columns 16
Mounting Type Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 96 Differential Pairs
Features Shielded
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Black
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 85°C
MSL Level Vendor Undefined
REACH Status REACH info available upon request
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-171400-5026
Standard Package 1
Win Source Part Number 1034946-171400-5026
Ultra Librarian 3D Model Ultra Librarian 171400-5026 CAD Model

Description

The Molex 1034946-171400-5026 is a shielded backplane connector that comes in a box package.

  • Manufacturer: Molex
  • Shielded: shielded
  • Package: box
  • Pitch: 0.075" (1.90mm)
  • Color: black
  • Type: receptacle, female sockets
  • Positions Loaded: all
  • Contact Finish: gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Voltage Rating: -
  • Material Flammability Rating: UL94 V-0
  • Usage: coplanar, daughtercard
  • Number of Columns: 16
  • Mounting Type: through hole, right angle
  • Operating Temperature: -55°C ~ 85°C
  • Alternative Parts: 1934218-1, 171400-1026, 2007703-1, 76170-5026, 171400-1020, and 2007722-11714005026
