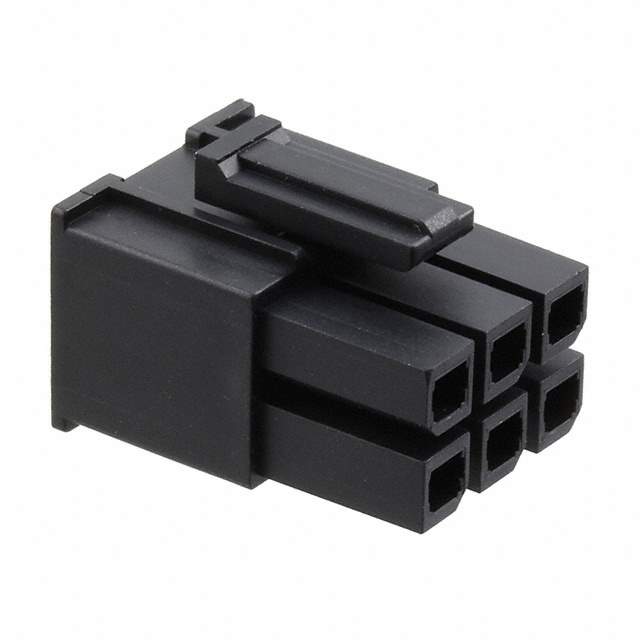

The Molex 171692-0106 is a Micro-Fit 3.0 receptacle housing designed for wire-to-board connections. This housing is part of the Micro-Fit 3.0 connector system, known for its compact size and high current carrying capabilities. It is designed to provide a reliable and secure connection in a variety of applications.

Applications:

• Consumer electronics
• Automotive systems
• Industrial equipment
• Medical devices
• Telecommunications equipment

Features:

• Micro-Fit 3.0 design
• 6 Circuits
• Single Row
• High temperature thermoplastic
• Positive locking feature

Benefits:

• Compact size saves board space
• Reliable connection ensures signal integrity
• Durable construction for long-lasting performance
• Secure locking prevents accidental disconnections
• Suitable for high-temperature environments

Additional Details:

The 171692-0106 housing mates with Micro-Fit 3.0 headers. The housing material is a high-temperature thermoplastic, suitable for reflow soldering processes. The positive locking feature provides an audible click, confirming a secure connection. Detailed specifications including voltage and current ratings, and flammability ratings are available in the product datasheet.
