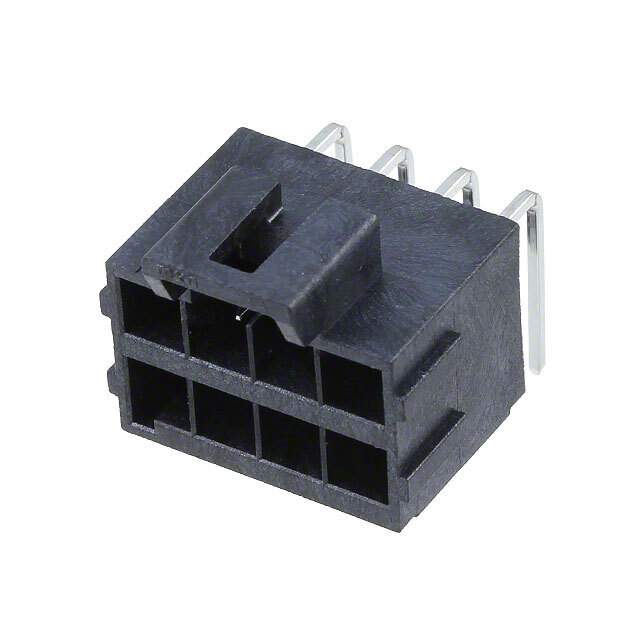

1723161108 Real Image
Same model may have multiple batches, images only for reference.

1723161108

Part No 1723161108
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Datasheet
1723161108 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Ultra-Fit 172316
Package Tray
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.138" (3.50mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.181" (4.60mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.534" (13.56mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Voltage Rating 400V
Contact Finish Thickness - Post 60.0µin (1.52µm)
Applications Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number 172316
Other Names WM11598,172316-1108
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293213-1723161108
Ultra Librarian 3D Model Ultra Librarian 1723161108 CAD Model

Description

The Ultra-Fit 172316 8-position male pin header is an ideal solution for various applications such as automotive, industrial, lighting, medical, military, and telecommunications.

  • Positions: 8
  • Rows: 2
  • Contact Material: Copper Alloy
  • Contact Type: Male Pins
  • Positions Loaded: All
  • Termination: Soldered
  • Board Guides: Yes
  • Latch Holder: Yes
  • Fastening: Easy and Secure
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Shrouding: Shrouded with 4 walls
  • Pitch: 0.138 inches (3.50mm)
  • Row Spacing: 0.181 inches (4.60mm)
  • Contact Finish (Mating/Post): Tin, 60.0μin (1.52μm)
  • Insulation Height: 0.534 inches (13.56mm)
  • Contact Shape: Square
  • Temperature Range: -40°C to 105°C
