Same model may have multiple batches, images only for reference.

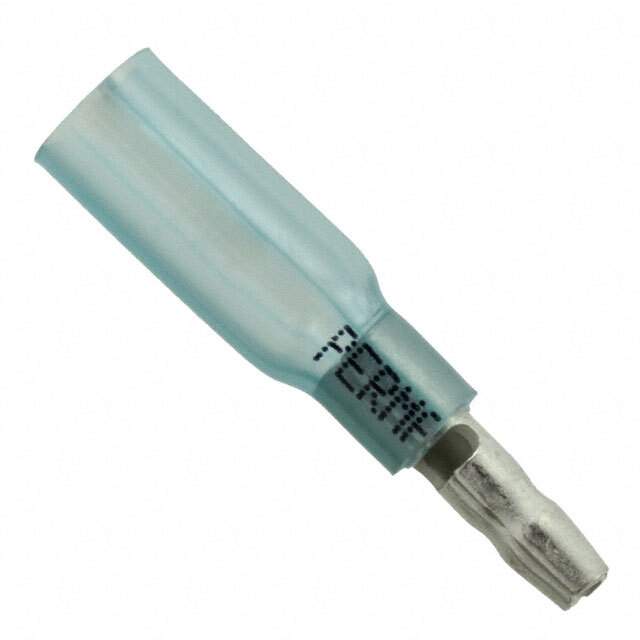

0191640039 Real Image
Same model may have multiple batches, images only for reference.

0191640039

Part No 0191640039
Manufacturer Molex, LLC
Catalog Terminals
Description CONN TERM PIN 14-16AWG CRIMP / Terminal Connector Male, Pin (Plug) 14-16 AWG Crimp Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Barrel, Bullet Connectors
Manufacturer Molex
Packaging Bulk
Terminal Type Male, Pin (Plug)
Diameter - Barrel 0.180" (4.57mm)
Wire Gauge 14-16 AWG
Length - Overall 1.480" (37.59mm)
Length - Barrel 0.420" (10.67mm)
Insulation Fully Insulated Heat Shrink
Termination Crimp
Contact Material Copper
Contact Finish Tin
Color Blue
Insulation Diameter 0.230" (5.84mm)
Material - Insulation NiAc
Base Product Number 019164
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number 0191640039-ND,191640039,19164-0039,019164-0039,SB-279,WM22978
Standard Package 500
Win Source Part Number 1333915-0191640039
Ultra Librarian 3D Model Ultra Librarian 0191640039 CAD Model

Description

The Molex 1333915-0191640039 is a male pin (plug) terminal with a fully insulated heat shrink feature.

  • Contact Finish: Tin
  • Contact Material: Copper
  • Wire Gauge: 14-16 AWG
  • Length: 1.480" (37.59mm)
  • Barrel Diameter: 0.180" (4.57mm)
  • Barrel Length: 0.420" (10.67mm)
  • Insulation Diameter: 0.230" (5.84mm)
  • Insulation Material: NiAc
  • Termination: Crimp termination
  • Packaging: Bulk packaging of 500 units
