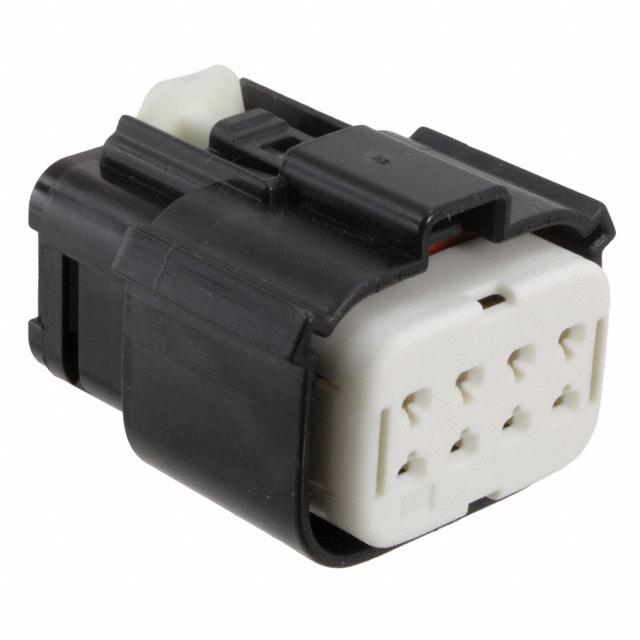

Same model may have multiple batches, images only for reference.
194180001 Molex, LLC
Same model may have multiple batches, images only for reference.

194180001

Part No 194180001
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT 8POS 18-22AWG
Datasheet
194180001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series MX150L 19418
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.230" (5.84mm)
Number of Rows 2
Row Spacing 0.236" (6.00mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Holder
Features Connector Position Assurance (CPA), IP67
Note Contacts Not Included
Win Source Part Number 760745-194180001
Popularity Medium
Supply and Demand Status Limited
Family Name 19418
Introduction Date July 08, 2010
ECCN EAR99
Country of Origin Taiwan, Taiwan, Taiwan, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 194180001 CAD Model

Description

The Molex MX150L 19418 760745-194180001 is a bulk packaging connector receptacle with 8 positions and 0.230" (5.84mm) pitch.

  • Positions: 8
  • Pitch: 0.230" (5.84mm)
  • CPA: Yes
  • IP Rating: IP67
  • Connector Type: Female Socket
  • Contact Termination: Crimp
  • Rows: 2
  • Row Spacing: 0.236" (6.00mm)
  • Fastening: Latch Holder
  • Contacts Included: No
  • Mounting Type: Free Hanging (In-Line)
  • Family: 19418
  • Introduction Date: July 08, 2010
  • ECCN: EAR99
  • Halogen Free: Compliant
  • EOL Date: 2028 (Estimated)
  • Supply and Demand Status: Limited
