Same model may have multiple batches, images only for reference.

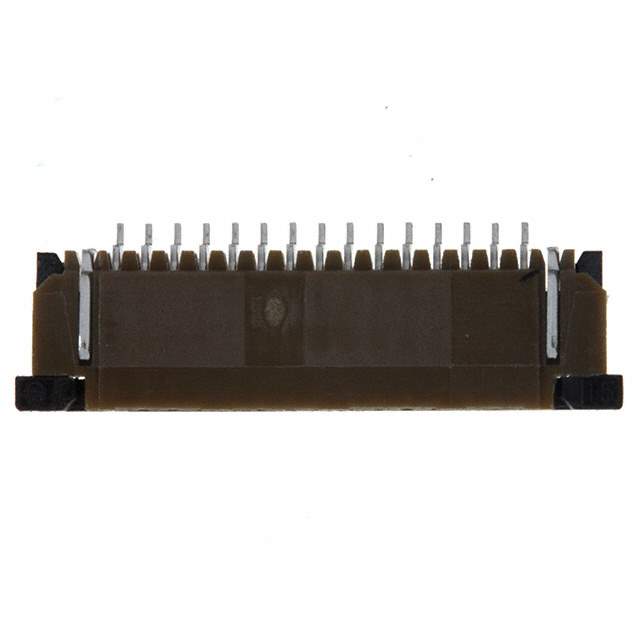

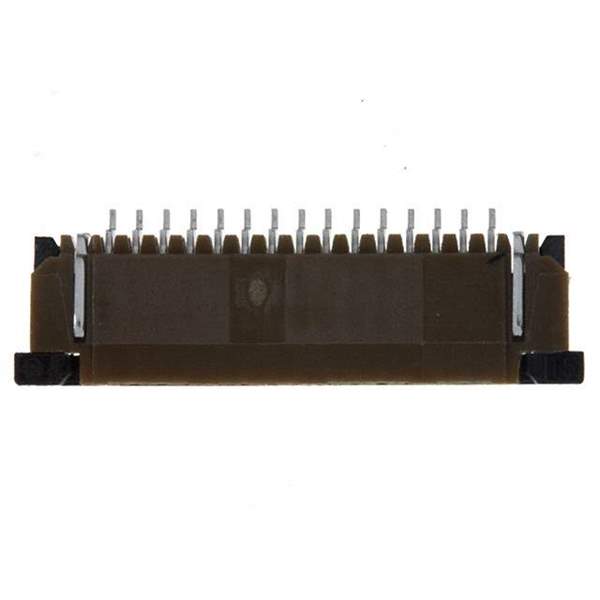

SFW15R-2STE1LF Real Image
Same model may have multiple batches, images only for reference.

SFW15R-2STE1LF

Part No SFW15R-2STE1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC TOP 15POS 1MM R/A  /  15 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW-R
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 15
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.106" (2.70mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Actuator Color Black
Mating Cycles 20
Base Product Number SFW15R
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1906-6,609-1906-2,SFW15R2STE1LF,609-1906-1
Standard Package 2,000
Win Source Part Number 960118-SFW15R-2STE1LF
Ultra Librarian 3D Model Ultra Librarian SFW15R-2STE1LF CAD Model

Description

The SFW-R series of connectors from Amphenol ICC (FCI) is a range of flat flexible connectors that are ideal for use in a variety of applications.

  • Series: SFW-R
  • Configuration: Top
  • Locking Feature: Slide Lock
  • Number of Rows: One
  • Pitch: 0.039" (1.00mm)
  • Mounting Type: Surface Mount (SMT)
  • Housing Material: Polyphenylene Sulfide (PPS), Glass-Filled
  • Flammability Rating: UL94 V-0
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Height Above Board: 0.106" (2.70mm)
  • Voltage Rating: 100V
  • Current Rating: 1A
  • Temperature Range: -55°C to 105°C
  • Cable End Type: Straight
  • Packaging: Tape & Reel
