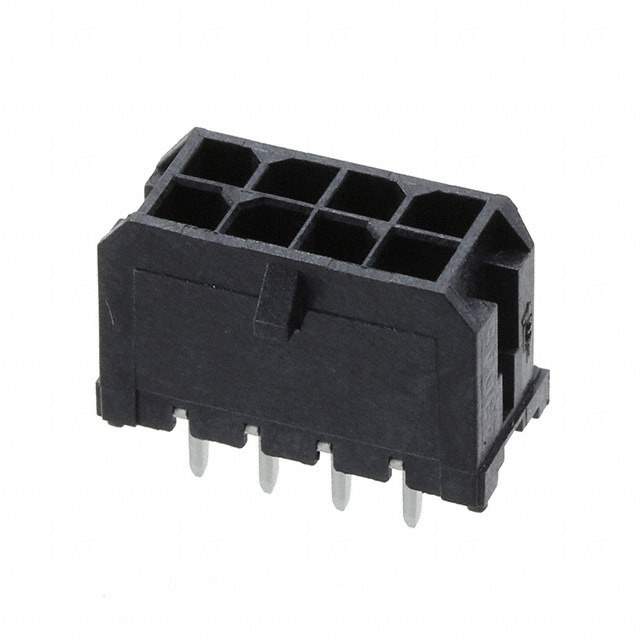

430450828 Real Image
Same model may have multiple batches, images only for reference.

430450828

Part No 430450828
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description MICROFIT 3.0 VERT TH HDR DR 15AU
Datasheet
430450828 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 8
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.390" (9.91mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 1005514-430450828
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 430450828 CAD Model

Description

This electronic component is a connector header manufactured by Molex, LLC.

  • Win Source Part Number: 1005514-430450828
  • Manufacturer: Molex, LLC
  • Packaging: Tray
  • Shrouding: Shrouded-4 Wall
  • Number of Positions: 8
  • Board Guide: Yes
  • Contact Type: Male Pin
  • Voltage Rating: -
  • Current Rating: -
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
