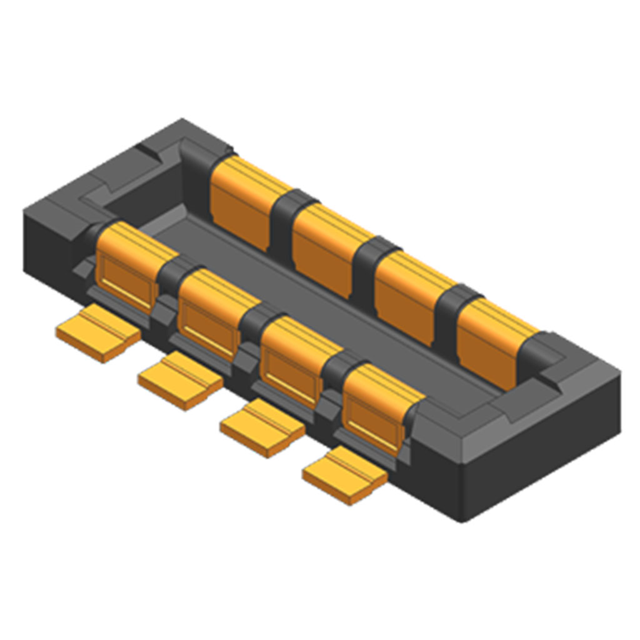

2074200081 Molex
Same model may have multiple batches, images only for reference.

2074200081

Part No 2074200081
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description 0.8 BT BTB H0.75 8P PLUG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201996-2074200081
Manufacturer Molex
Category Connectors, Interconnects -Rectangular Connectors -Arrays, Edge Type, Mezzanine (Board to Board)
Series SlimStack 207420
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 8 (4 + 4 Power)
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Type Surface Mount
Ultra Librarian 3D Model Ultra Librarian 2074200081 CAD Model

Description

The SlimStack 207420 is a rectangular connector array manufactured by Molex.

  • Application: Edge type and Mezzanine (Board to Board) connectors
  • Positions: 8
  • Positions Breakdown: 4 Power Positions and 4 Regular Positions
  • Pitch: 0.031" (0.80mm)
  • Connector Type: Plug with Outer Shroud Contacts
  • Rows: 2
  • Packaging: Tape and Reel
  • Product Status: Active
