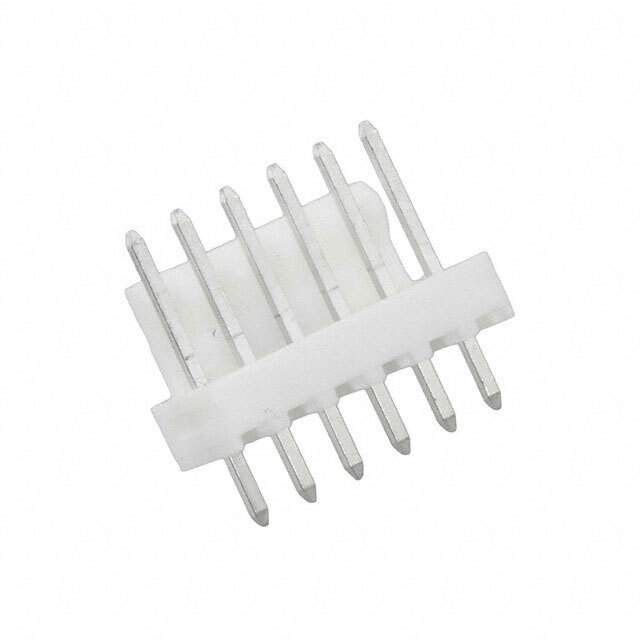

Same model may have multiple batches, images only for reference.

22-23-2061

Name: 22-23-2061
Brand: Molex, LLC
SKU: 1035833
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	22-23-2061
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	KK 254 Solid Header, Vertical, with Friction Lock, 6 Circuits, Tin (Sn) Plating
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	CSA, UL
Color	White
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	10 mΩ
Country of Origin	US
Current Rating	4 A
Depth	9.02 mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	10.91 mm
Housing Color	Orange
Housing Material	Nylon
Insulation Resistance	500 GΩ
Lead Free	Yes
Lead Pitch	2.54 mm
Length	31.7 mm
Max Current Rating	7 A
Maximum Operating Temperature	75 °C
Max Voltage Rating (AC)	600 V
Min Operating Temperature	0 °C
Mount	Cable, Through Hole
Number of Circuits	6
Number of Contacts	6
Number of Pins	6
Number of Positions	6
Number of Rows	1
Orientation	Vertical
Packaging	Bulk
Pitch	2.54 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Through Hole
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Win Source Part Number	1035833-22-23-2061
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 22-23-2061 CAD Model

Alternative Products

Description

This is a 6-position, 2.54 mm pitch, white-colored male connector manufactured by Molex, LLC.

Manufacturer: Molex, LLC
Win Source Part Number: 1035833-22-23-2061
Positions: 6
Pitch: 2.54 mm
Color: White
Contact Material: Brass
Housing Material: Nylon
Contact Plating: Tin
Voltage Rating: 250 V
Current Rating: 4 A
Halogen: Low Halogen
RoHS Compliant: Yes
Circuits: 6
Insulated: Yes
Maximum Operating Temperature: 75 °C
Lead-Free: Yes
Application: Circular Connectors - Housings
Supply and Demand Status: Shortage
