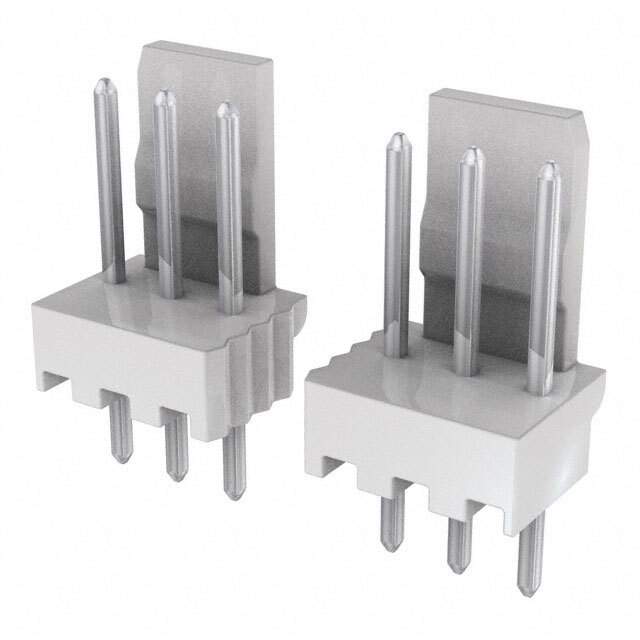

0022041071 Real Image
Same model may have multiple batches, images only for reference.

0022041071

Part No 0022041071
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 7POS 2.5MM / Connector Header Through Hole 7 position 0.098" (2.50mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Through Hole
Termination Solder
Fastening Type Friction Lock
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.134" (3.40mm)
Overall Contact Length 0.559" (14.20mm)
Insulation Height 0.461" (11.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 200.0µin (5.08µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Base Product Number 002204
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 22-04-1071-E,WM18790,0022-04-1071,WM18790-ND,0022041071-E,5045-07A,22041071,22-04-1071-P,22-04-1071,22041071-E,22-04-1071-ND,0022-04-1071-E,23-0022041071
Standard Package 1
Win Source Part Number 1333087-0022041071
Ultra Librarian 3D Model Ultra Librarian 0022041071 CAD Model

Description

The Molex 1333087-0022041071 is a 7-position male pin header connector designed for use in a variety of applications.

  • Contact Material: Brass
  • Contact Finish: Tin
  • Fastening Type: Friction Lock
  • Pitch: 0.098 inches
  • Shrouded: 1 Wall
  • Contact Finish Mating: Tin
  • Contact Finish Mating Thickness: 200.0μin
  • Contact Finish Post:
  • Overall Contact Length: 0.559 inches
  • Insulation Height: 0.461 inches
  • Insulation Material: Polyamide (PA), Nylon
  • Packaging: Bulk
  • Standard Package: 1
  • Mounting Type: Through Hole
  • Termination: Solder
