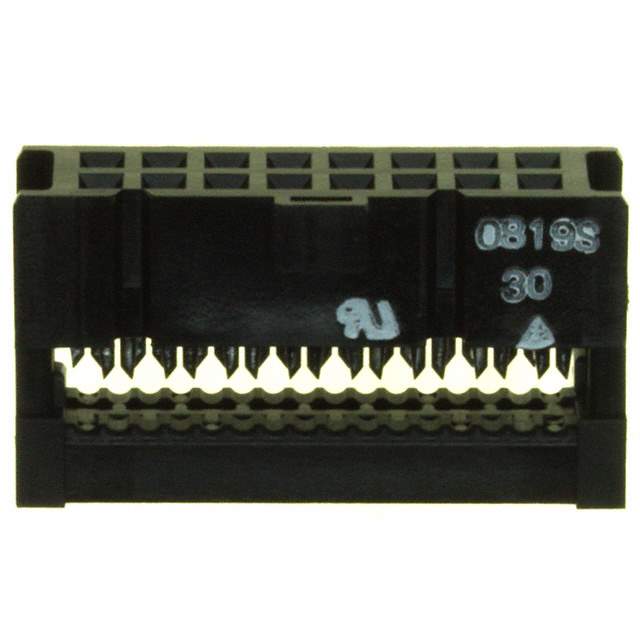

XG4M-1630 Real Image
Same model may have multiple batches, images only for reference.

XG4M-1630

Part No XG4M-1630
Manufacturer Omron
Catalog Rectangular Connectors
Description CONN RCPT 16POS IDC 28AWG GOLD  /  16 Position Rectangular Receptacle Connector IDC Gold 28 AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Omron Electronics Inc-EMC Div
Series XG4
Package Tray
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 16
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Wire Type Ribbon Cable
Wire Gauge 28 AWG
Features Feed Through, Polarizing Key
Contact Finish Gold
Contact Finish Thickness 5.90µin (0.150µm)
Color Black
Base Product Number XG4M
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XG4M-1630-ND,OR914,XG4M-1630 BY OMZ,XG4M1630,XG4M1630BYOMZ
Standard Package 120
Win Source Part Number 1019353-XG4M-1630
Ultra Librarian 3D Model Ultra Librarian XG4M-1630 CAD Model

Description

The XG4 series connector is a rectangular connector designed for use in free hanging and panel mount applications.

  • Series: XG4
  • Type: Rectangular Connector
  • Mounting: Free Hanging, Panel Mount
  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Features: Feed Through, Polarizing Key
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Rows: 2
  • Row Spacing: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 5.90µin (0.150µm)
  • Packaging: Tray
  • Wire Gauge: 28 AWG
  • Cable Termination: IDC
  • Wire Type: Ribbon Cable
  • ECCN: EAR99
