Same model may have multiple batches, images only for reference.

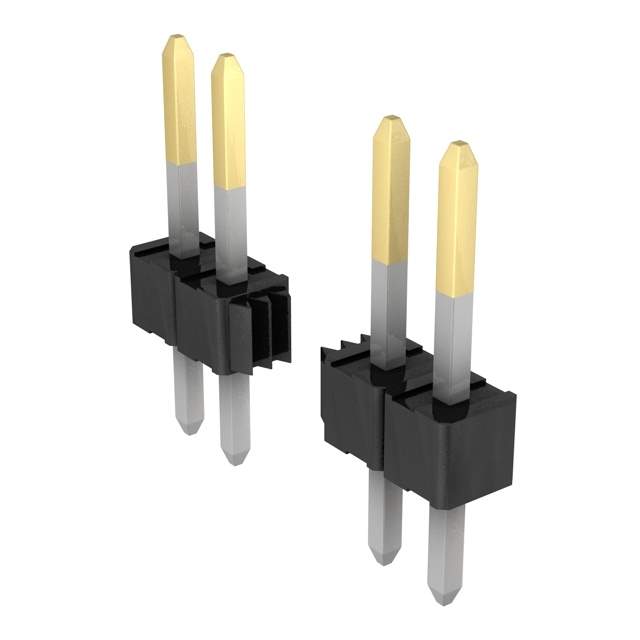

0022284163 Real Image
Same model may have multiple batches, images only for reference.

0022284163

Part No 0022284163
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header, Breakaway
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.240" (6.10mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.455" (11.56mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications Automotive, General Purpose, Medical, Telecommunications
Base Product Number 002228
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0022-28-4163,0022-28-4163-E,22-28-4163,WM6516-ND,22284163,WM50016-16,WM6516,22-28-4163-E,22-28-4163-ND,0022284163-E,22284163-E
Standard Package 1
Win Source Part Number 1333083-0022284163
Ultra Librarian 3D Model Ultra Librarian 0022284163 CAD Model

Description

The Molex 1333083-0022284163 is a 16-position header connector designed for board-to-board or cable applications.

  • Rows: 1
  • Contact Type: Male Pins
  • Fastening Type: Push-Pull
  • Voltage Rating: -
  • Material Flammability Rating: UL94 V-0
  • Contact Material: -
  • Contact Finish: Gold
  • Applications: Automotive, General-Purpose, Medical, and Telecommunications
  • Mounting Type: Through-Hole
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Pitch: 0.100" (2.54mm)
  • Insulation Height: 0.090" (2.29mm)
  • ROHS3 Compliant: Yes
  • Packaging: Bulk
