Same model may have multiple batches, images only for reference.

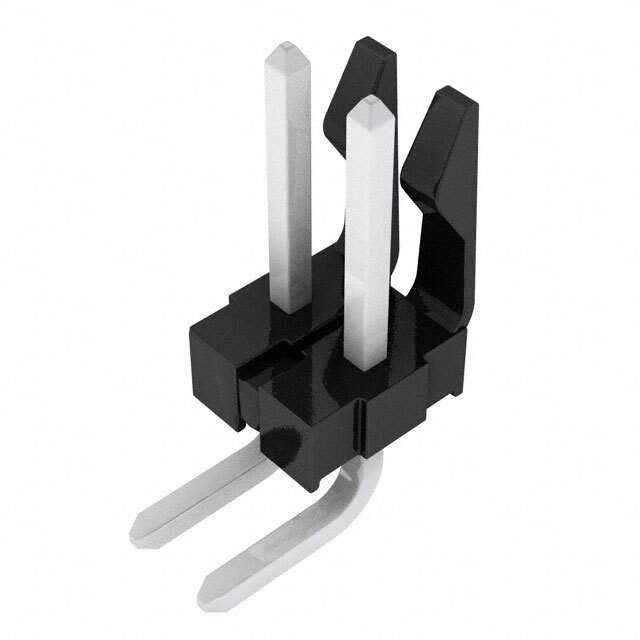

26-48-1026 Real Image
Same model may have multiple batches, images only for reference.

26-48-1026

Part No 26-48-1026
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description KK 396 Breakaway Header, Right-Angle with Friction Lock, 2 Circuits, Tin (Sn) Plating
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, TUV, UL
Color Black
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 7 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Black
Housing Material Polyester
Insulation Resistance 500 GΩ
Lead Free Lead Free
Lead Pitch 3.96 mm
Max Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 2
Number of Contacts 2
Number of Positions 2
Number of Rows 1
Orientation Right Angle, Vertical
Packaging Bulk
Pitch 3.96 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1132973-26-48-1026
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 26-48-1026 CAD Model

Description

This Molex circular connector housing is designed to provide reliable and secure connections for electronic devices.

  • Gender: Male
  • Current Rating: 7 A
  • Voltage Rating: 250 V
  • Mounting: Through-hole mounted
  • Pitch: 3.96 mm
  • Contact Material: Brass
  • Contact Plating: Tin
  • Housing Material: Polyester
  • Housing Color: Black
  • Orientation: Right-angle and vertical
  • RoHS Compliant: Yes
  • Approvals: CSA, TUV, and UL
  • Supply and Demand Status: Limited
  • Popularity: Highly popular
  • Suitable Applications: Computers, servers, and other high-performance devices
