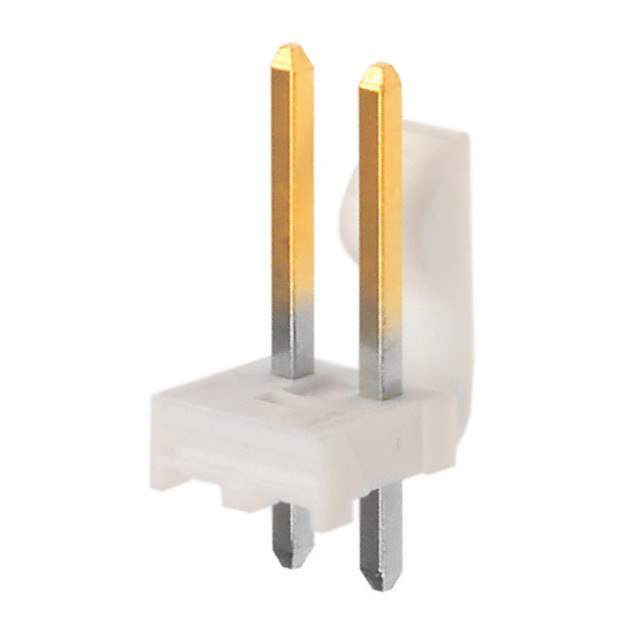

26-61-4020 Real Image
Same model may have multiple batches, images only for reference.

26-61-4020

Part No 26-61-4020
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description KK 396 Header, Vertical, Friction Lock, 2 Circuits, Gold (Au) Plating
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Material Brass
Contact Plating Gold
Contact Resistance 6 mΩ
Country of Origin US
Current Rating 7 A
Depth 10.01 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 14.73 mm
Housing Color Natural
Housing Material Polyester
Insulation Resistance 50 GΩ
Lead Free Yes
Lead Pitch 3.96 mm
Length 7.77 mm
Max Current Rating 7 A
Maximum Operating Temperature 75 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 2
Number of Contacts 2
Number of Positions 2
Number of Rows 1
Orientation Right Angle, Vertical
Packaging Bulk
Pitch 3.96 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1034088-26-61-4020
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 26-61-4020 CAD Model

Description

The Molex 1034088-26-61-4020 is a circular connector housing with 2 positions and a pitch of 3.96 mm.

  • Positions: 2
  • Pitch: 3.96 mm
  • Voltage Rating: 250 V
  • Current Rating: 7 A
  • Orientation: Right Angle and Vertical
  • Mounting: Through-hole
  • Contact Resistance: 6 mΩ
  • Insulation Resistance: 50 GΩ
  • Housing Material: Polyester
  • Color: Natural
  • RoHS Compliant: Yes
  • Lead-Free: Yes
  • Maximum Operating Temperature: 75 °C
  • Minimum Operating Temperature: 0 °C
  • Supply and Demand Status: Shortage
  • Glow Wire Compliant: No
