Same model may have multiple batches, images only for reference.

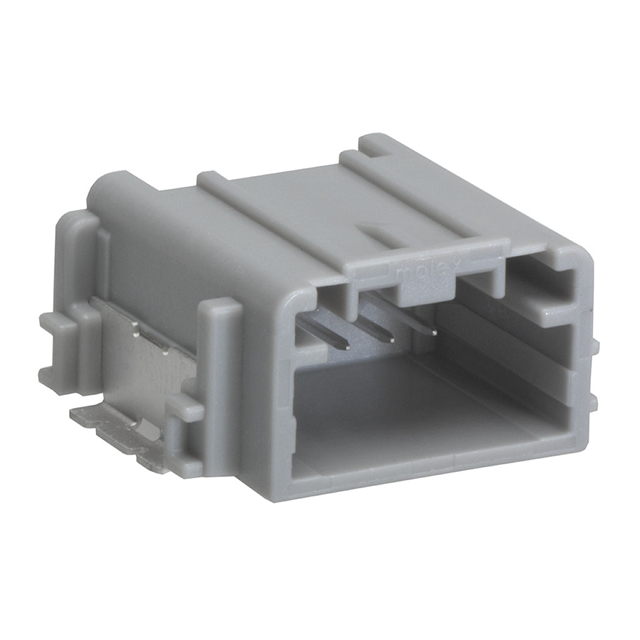

0349128041 Real Image
Same model may have multiple batches, images only for reference.

0349128041

Part No 0349128041
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2MM / Connector Header Surface Mount, Right Angle 4 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.079" (2.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.218" (5.55mm)
Insulation Height 0.372" (9.44mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Syndiotactic Polystyrene (SPS), Glass Filled
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Gray
Applications Automotive
Base Product Number 034912
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM10319DKR,349128041,0349128-8041,WM10319TR,34912-8041,WM10319CT,349128-8041
Standard Package 250
Win Source Part Number 1332952-0349128041
Ultra Librarian 3D Model Ultra Librarian 0349128041 CAD Model

Description

The Molex 1332952-0349128041 is a 4-position header connector with a male blade contact type.

  • Mounting: Surface Mount and Right-Angle
  • Pitch: 0.079 inches (2.00mm)
  • Insulation Material: Syndiotactic Polystyrene (SPS) with Glass Filling
  • Insulation Color: Gray
  • Contact Material: Brass
  • Contact Finish: Tin
  • Application: Automotive
  • Flammability Rating: UL94 V-0
  • Fastening Type: Latch Holder
  • Packaging: Reels of 250
  • Row Spacing: N/A
  • Contact Length Post: N/A
  • Contact Length Mating: 0.218 inches (5.55mm)
