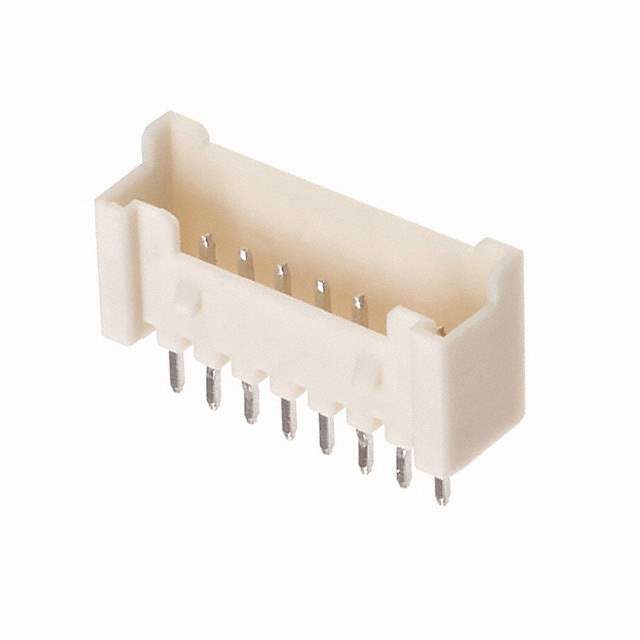

Same model may have multiple batches, images only for reference.

35362-0850

Name: 35362-0850
Brand: Molex, LLC
SKU: 20229
Availability: InStock
Rating: 4.91 (48 reviews)

Get a Quote

Part No	35362-0850
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 8POS 2MM VERT TIN
Datasheet	35362-0850 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.145" (3.70mm)
Contact Length - Post	0.130" (3.30mm)
Insulation Height	0.335" (8.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39μin (1.00μm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-40°C to 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Voltage Rating	125V
Mated Stacking Heights	8.5mm
Contact Finish Thickness - Post	39μin (1.00μm)
Applications	Automotive, General Purpose
Win Source Part Number	20229-35362-0850
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian 35362-0850 CAD Model

Alternative Products

Description

Renowned for its reliability, the 35362-0850 connector offers exceptional performance in complex electronic systems. Its robust design is a testament to enduring utility.

Features and Benefits

Reliability: Ensures stable electrical connections under varying conditions.
High Performance: Facilitates optimal data transmission and electric flow.
Ease of Use: Simplified installation process.

Applications

Automotive Electronics
Home Automation
Industrial Equipment
Communication Devices

The 35362-0850 is perfect for projects that demand high efficiency and steadfast connections.
