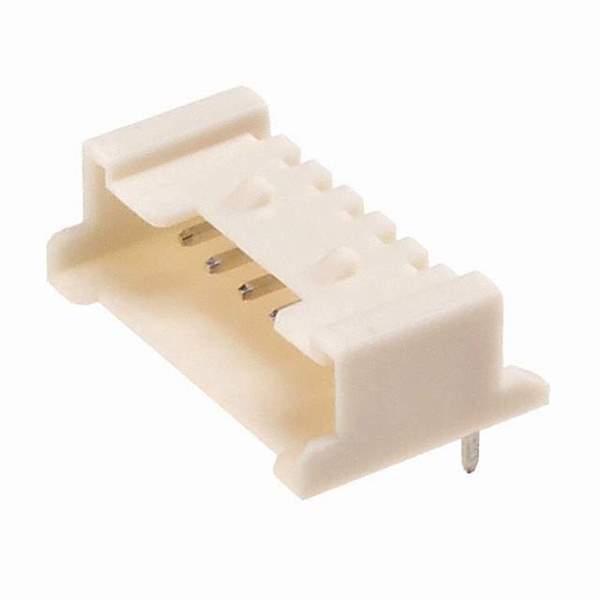

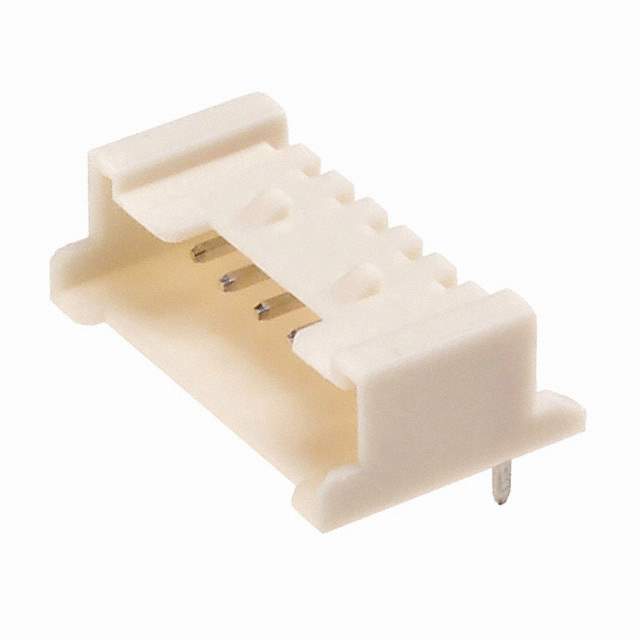

0353630760 Real Image
Same model may have multiple batches, images only for reference.

0353630760

Part No 0353630760
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 7POS 2MM / Connector Header Through Hole, Right Angle 7 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.145" (3.70mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 78.7µin (2.00µm)
Applications Automotive, General Purpose
Base Product Number 035363
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 35363-0760,035363-0760,353630760,35363-0760-P,0353630760-P,353630760-P,035363-0760-P,WM18936
Standard Package 500
Win Source Part Number 1332997-0353630760
Ultra Librarian 3D Model Ultra Librarian 0353630760 CAD Model

Description

The Molex Header Connector is a male pin type connector that is commonly used in automotive and general purpose applications.

  • Shape: Rectangular
  • Positions Loaded: 7
  • Pitch: 0.079 inches
  • Mounting Type: Through-Hole, Right Angle
  • Fastening Type: Locking Ramp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Insulation Material: Polyamide (PA), Nylon
  • Insulation Color: Natural
  • Shrouded: 4 Wall
  • Contact Shape: Square
  • Contact Length (Mating): 0.145 inches
  • Contact Length (Post): 0.126 inches
  • RoHS3 Compliant: Yes
  • Package: 500
