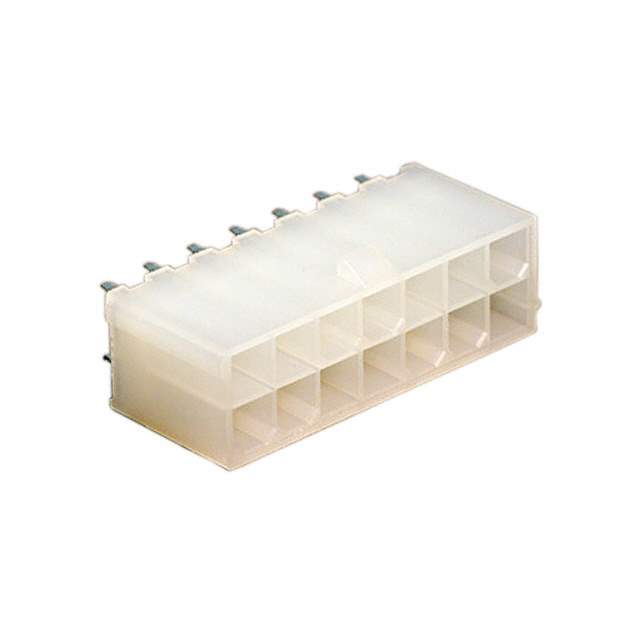

39-28-1143 Real Image
Same model may have multiple batches, images only for reference.

39-28-1143

Part No 39-28-1143
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 14POS 4.2MM VERT TIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 4.20mm
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 14
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35μin (0.90μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 35μin (0.90μm)
Applications General Purpose, Industrial, Telecommunications
Win Source Part Number 052747-39-28-1143
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 39-28-1143 CAD Model

Description

Product Features and Benefits

  • Customizable options available to fit specific project needs.
  • Exceptional lifespan even under intense operational conditions.
  • Cost-effective with premium build quality for its price range.

Applications and Projects

  • Commonly used in marine equipment for its weather-resistant build.
  • Essential in data centers for its reliable connectivity.
  • Ideal for medical devices requiring precise and stable connections.

The 39-28-1143 is engineered for excellence in both durability and performance, providing a dependable solution across a multitude of demanding electronic environments.
