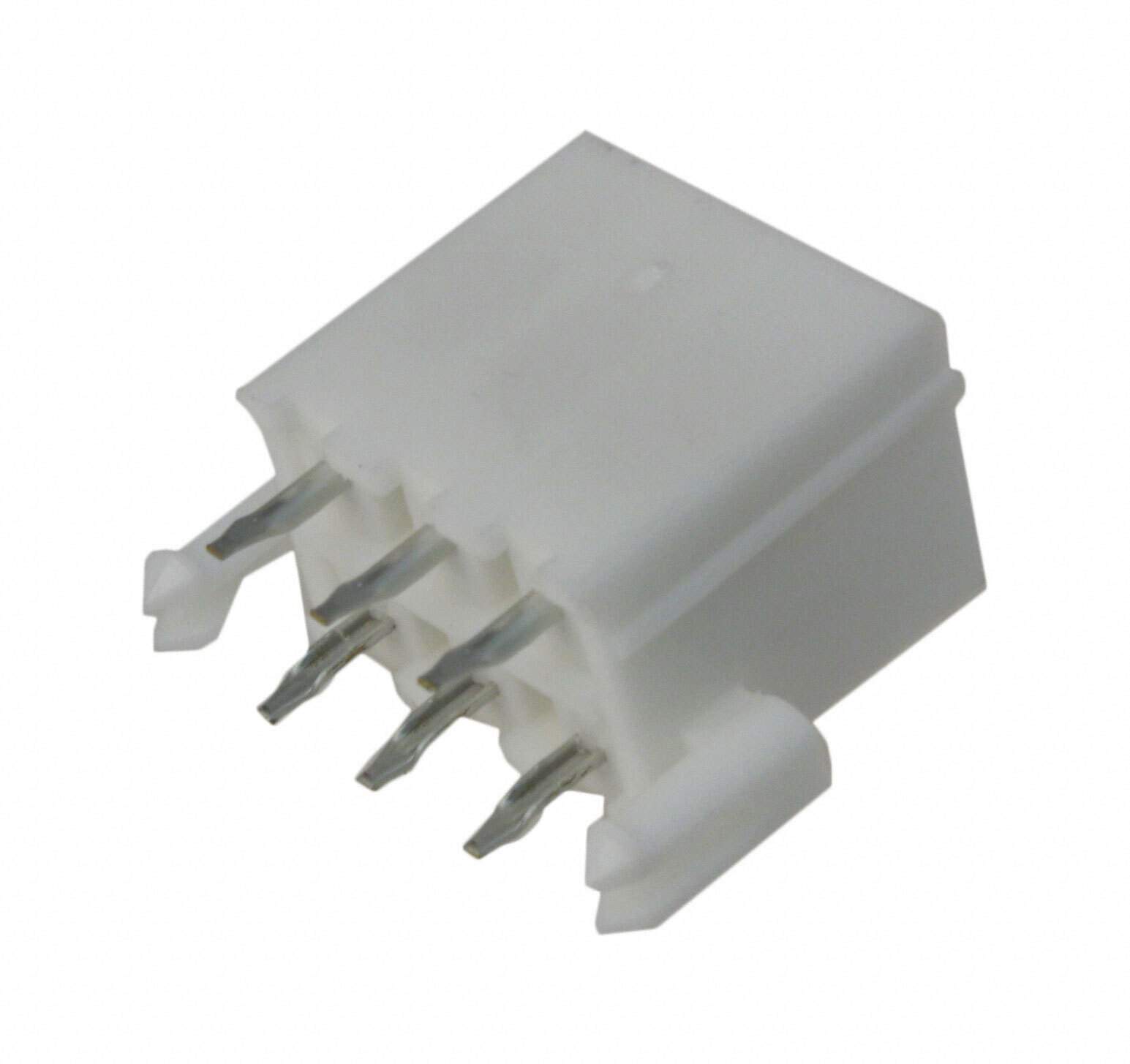

39-29-9069 Real Image
Same model may have multiple batches, images only for reference.

39-29-9069

Part No 39-29-9069
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Power HDR 6 POS 4.2mm Solder ST Thru-Hole 6 Terminal 1 Port Mini-Fit Jr™ Frame
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Gender Male
Contact Material Brass
Contact Plating Gold
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 8 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Natural
Housing Material Nylon
Lead Length 3.5 mm
Lead Pitch 4.2 mm
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Max Voltage Rating (DC) 600.6 kV
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 6
Number of Contacts 6
Number of Ports 1
Number of Positions 6
Number of Rows 2
Number of Terminals 6
Orientation Vertical
Pitch 4.2 mm
Radiation Hardening No
RoHS Compliant
Row Spacing 4.2 mm
Termination Solder
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1038360-39-29-9069
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 39-29-9069 CAD Model

Description

The Molex 1038360-39-29-9069 is a male circular connector housing with 6 positions and a pitch of 4.2mm.

  • Positions: 6
  • Pitch: 4.2mm
  • Color: White
  • Rows: 2
  • Row Spacing: 4.2mm
  • Termination: Solder
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Current Rating: 8A
  • Contact Resistance: 10 mΩ
  • Housing Material: Nylon
  • Circuits: 6
  • Orientation: Vertical
  • Contact Plating: Gold
  • Housing Color: Natural
  • Ports: 1
  • Terminals: 6
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Low Halogen: Yes
  • Maximum Operating Temperature: 105 degrees Celsius
  • Minimum Operating Temperature: -40 degrees Celsius
  • Supply: Short
  • Popularity: Yes
