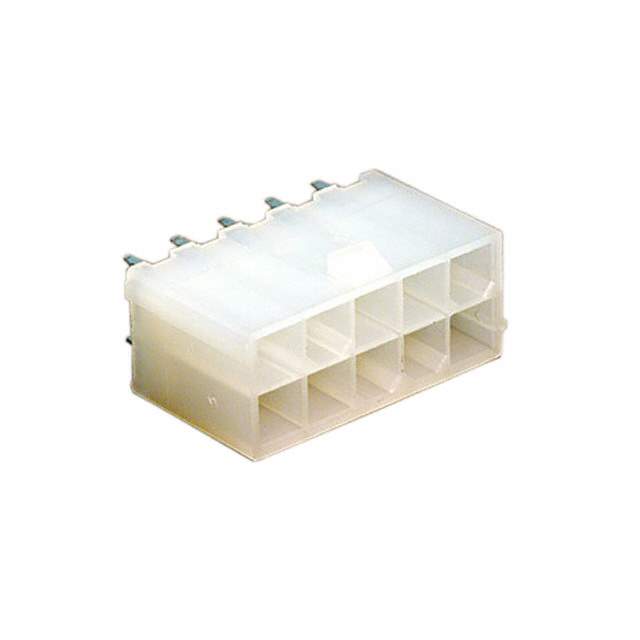

Part No 0039288100
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER VERT 10POS 4.2MM / Connector Header Through Hole 10 position 0.165" (4.20mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 10
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.138" (3.50mm)
Insulation Height 0.504" (12.80mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 35.4µin (0.90µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 35.0µin (0.90µm)
Applications General Purpose, Industrial, Telecommunications
Base Product Number 003928
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 39288100,39-28-8100,5566-10A-210,WM23804
Standard Package 250
Win Source Part Number 1332367-0039288100
Ultra Librarian 3D Model Ultra Librarian 0039288100 CAD Model

Description

The Molex 10-Position Male Pin Header Connector is a rectangular connector with a solder termination and locking ramp fastening type.

  • Number of Positions: 10
  • Pin Gender: Male
  • Termination: Solder
  • Fastening Type: Locking ramp
  • Rows: Two
  • Insulation Material: Polyamide and nylon 6/6
  • Body Finish: Glass-filled
  • Pitch: 0.165" (4.20mm)
  • Mating Cycle: 500
  • Design: Shrouded 4-wall
  • Operating Temperature Range: -40°C to 105°C
  • RoHS3 Compliant: Yes
  • Standard Package: 250
