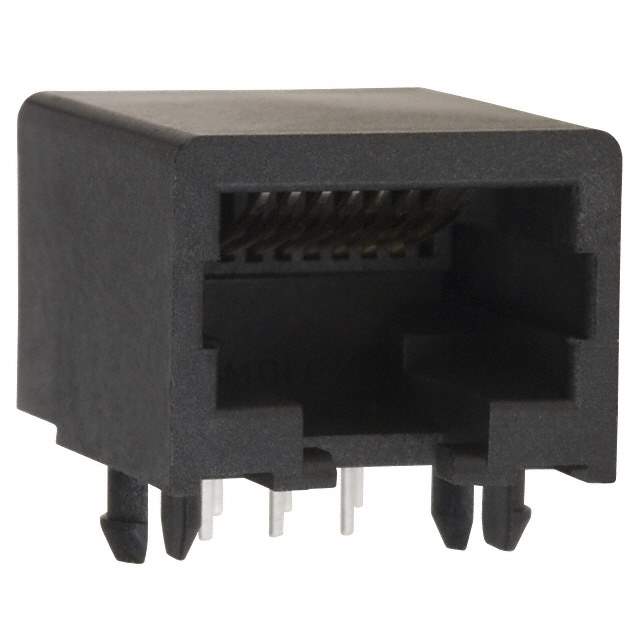

Same model may have multiple batches, images only for reference.

43202-8104

Name: 43202-8104
Brand: Molex, LLC
SKU: 1185604
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	43202-8104
Manufacturer	Molex, LLC
Catalog	Modular Connectors
Description	Modular Connectors / Ethernet Connectors MDJCK 8/8 RA LOPRO UNSHLD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Connector Type	RJ45
Contact Material	Bronze
Contact Plating	Gold
Contact Resistance	10 mΩ
Country of Origin	US
Current Rating	1.5 A
Depth	18.03 mm
Flammability Rating	UL94 V-0
Gender	Female
Housing Color	Black
Housing Material	Thermoplastic
Lead Free	Lead Free
Length	15.24 mm
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Contacts	8
Number of Ports	1
Number of Positions	8
Number of Positions Loaded	8
Orientation	Right Angle
Packaging	Bulk
Pitch	2.54 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS	Compliant
Shielding	Unshielded
Termination	Through Hole
Voltage Rating	125 V
Voltage Rating (DC)	125 V
Win Source Part Number	1185604-43202-8104
Categories	Modular Connectors
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 43202-8104 CAD Model

Alternative Products

Description

The 1185604-43202-8104 RJ45 connector is designed for use in modular connectors.

Positions: 8
Pitch: 2.54mm
Contact Material: Bronze
Voltage Rating: 125V
Current Rating: 1.5A
Applications: Telecommunications, automotive, and general-purpose
Temperature Range: -40°C to 85°C
Shielding: Unshielded
Housing Material: Thermoplastic
Orientation: Right angle
Contact Plating: Gold
Housing Color: Black
