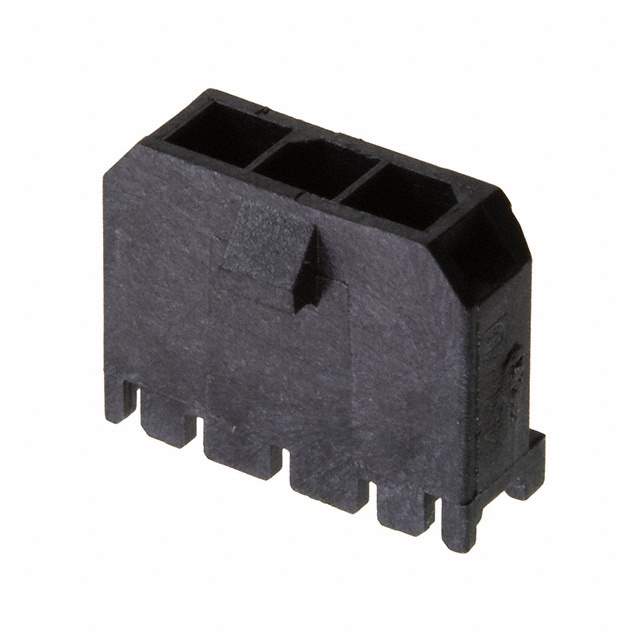

43650-0300

Part No 43650-0300
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 3POS 3MM RT ANG TIN
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 3
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.172" (4.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60μin (1.52μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Mated Stacking Heights 17.56mm
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 052762-43650-0300
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 43650-0300 CAD Model

Description

43650-0300 Connector

The 43650-0300 connector is a reliable and versatile electronic component ideal for various industrial applications. This durable connector ensures a steadfast connection, enhancing the performance and stability of your electronic systems.

Features and Benefits:

  • High-density pin configuration for enhanced connectivity.
  • Robust design ensures long-lasting use in demanding environments.
  • Easy integration with existing systems and components.

Applications/Projects:

  • Industrial automation systems.
  • Robotics and machinery control units.
  • Signal and power distribution in high-demand setups.

Enjoy seamless connectivity and operational excellence with the 43650-0300, trusted by professionals worldwide for its reliability and performance.
