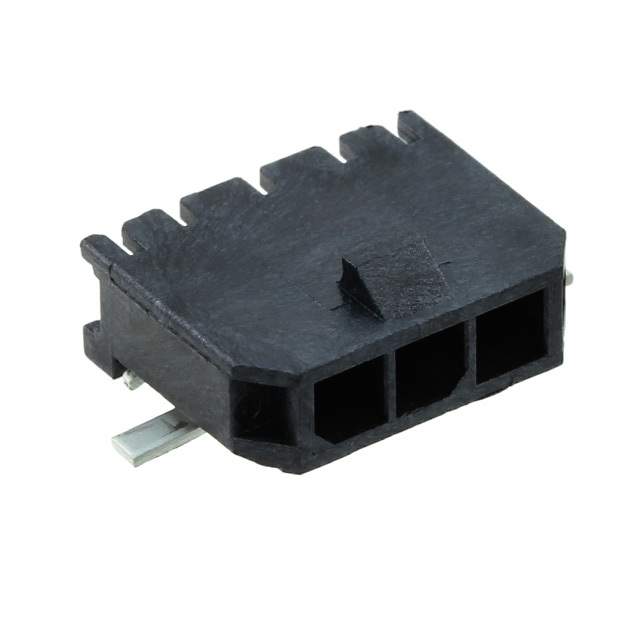

Same model may have multiple batches, images only for reference.

43650-0313

Name: 43650-0313
Brand: Molex, LLC
SKU: 1185245
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	43650-0313
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Wire to Board HDR 3 POS 3mm Solder RA Side Entry SMD Micro-Fit 3.0™ T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold
Country of Origin	US
Current Rating	5 A
Gender	Male
Glow Wire Compliant	Compliant
Halogen Free	Low Halogen
Height	4.37 mm
Housing Color	Black
Housing Material	Polymer
Insulation Resistance	1 GΩ
Lead Free	Lead Free
Lead Pitch	3 mm
Max Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Circuits	3
Number of Contacts	3
Number of Pins	5
Number of Positions	3
Number of Rows	1
Orientation	Right Angle
Pitch	3 mm
Plating	Tin
REACH SVHC	Unknown
RoHS	Compliant
Termination	Solder
Voltage Rating	600 V
Voltage Rating (DC)	250 V
Width	9.9 mm
Win Source Part Number	1185245-43650-0313
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 43650-0313 CAD Model

Alternative Products

Description

The Molex, LLC 1185245-43650-0313 is a 3-position circular connector housing with a pitch of 3mm.

Positions: 3
Pitch: 3mm
Color: Black
Termination: Solder
Contact Material: Brass
Voltage Rating: 600V
Current Rating: 5A
Contacts: 3
Gender: Male
Housing Material: Polymer
Orientation: Right Angle
Contact Plating: Gold
Housing Color: Black
Height: 4.37mm
Width: 9.9mm
Pins: 5
Contact Gender: Male
Lead-Free: Yes
RoHS Compliant: Yes
Insulation Resistance: 1 GΩ
Glow Wire Compliant: Yes
Minimum Operating Temperature: -40 °C
Maximum Operating Temperature: 105 °C
Supply and Demand Status: Limited
